● Platform Height: 16m
● Working height: 18m

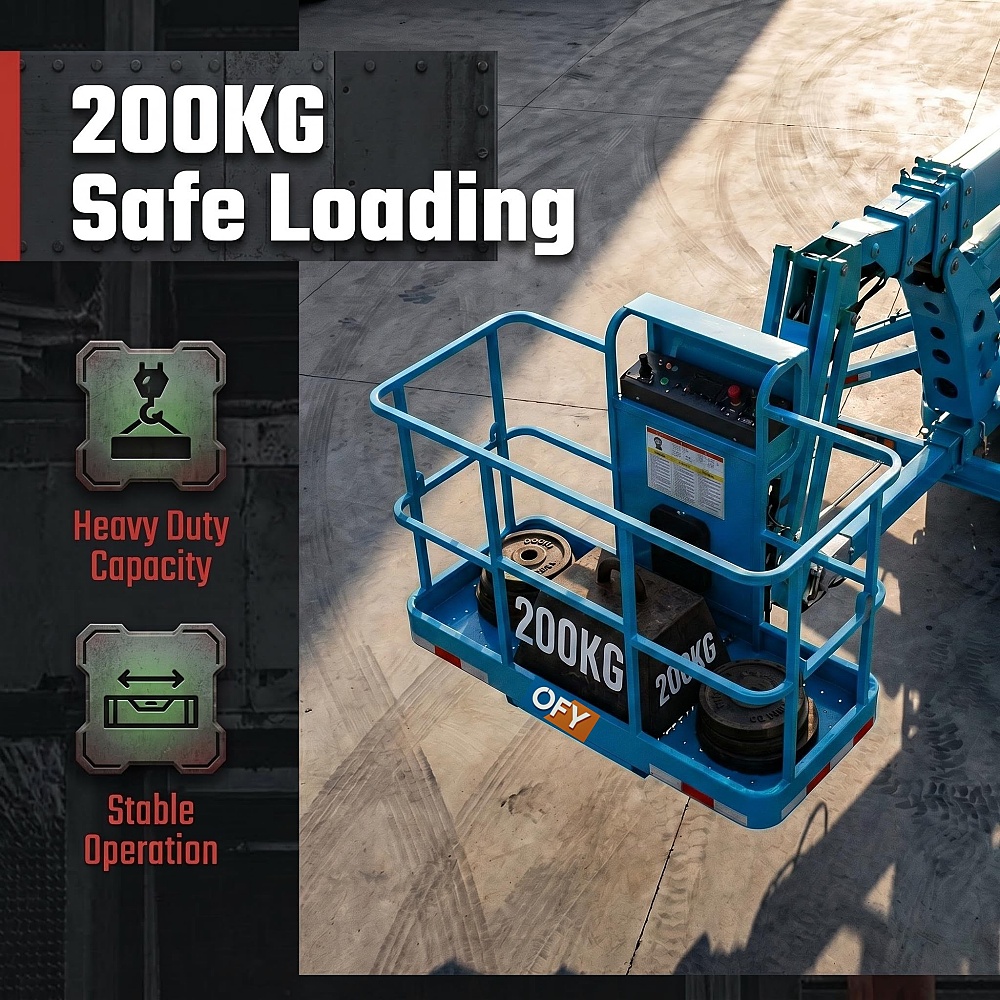

● Loading Capacity:200kg
● Platform size: 0.9*0.7m

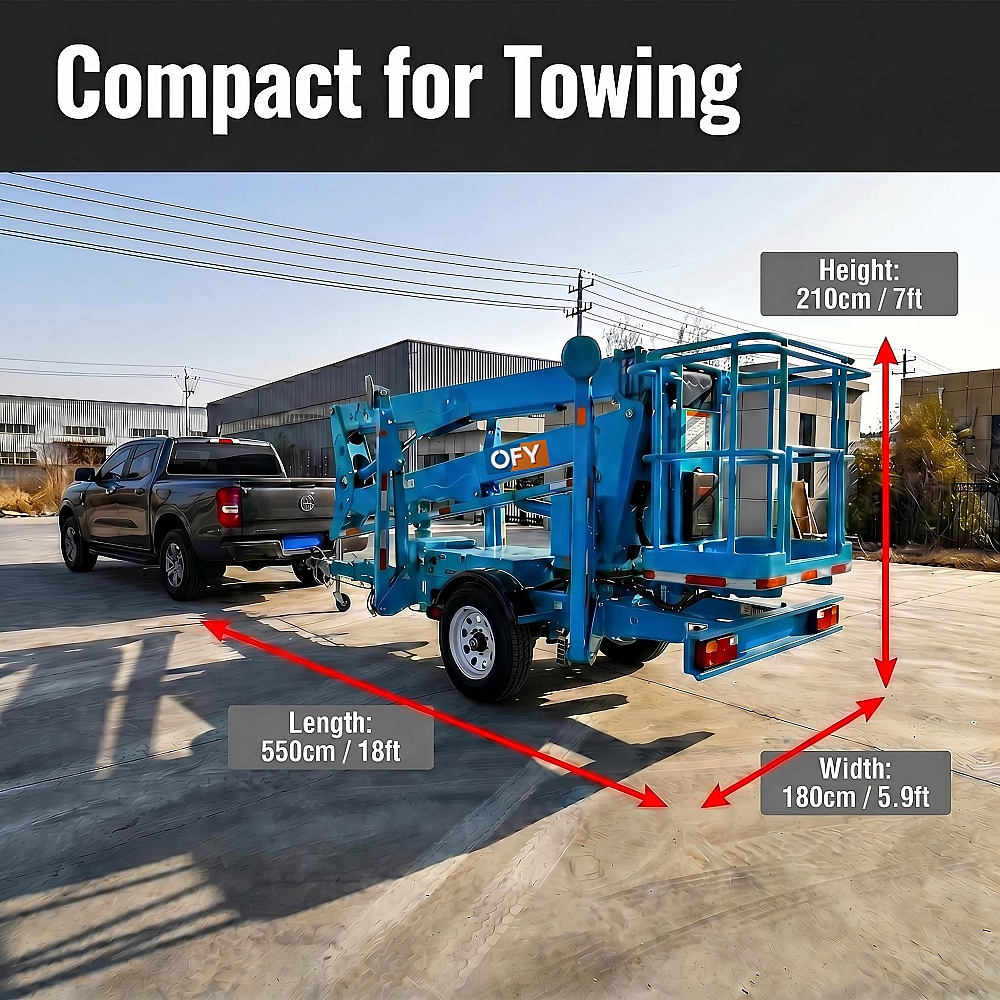

● Oversize:5.2*1.7*2.1m
● Net weight: 2800kg
● Power Type: AC 220V/110V
● Optional Power: Battery Power, Diesel Power, Gasoline Power
● Certificate: CE,ISO, EPA, Euro5, Saber
Get a quote| Item | Specification |
|---|---|
| Dimensions & Specifications | |
| Max. Working Height | 12-22 m |
| Max. Platform Height | 10-20 m |
| Working Radius | 13 m |
| Platform Size | 700/900/1100 mm |
| Overall Length‑Stowed | 5800 mm (basket removable for container transport) |
| Overall Width‑Stowed | 1800 mm |
| Overall Height‑Stowed | 2300 mm |
| Total Weight | 3800 kg |
| Performance | |
| Max. Load Capacity | 200 kg |
| Persons on Platform | 2 |
| Turntable Rotation | 359° non‑continuous / 360° continuous rotation (optional) |
| Travel Speed | 90 km/h |
| Gradeability | 25° |
| Ground Clearance | 250 mm |
| Drive Speed‑Raised | 4‑6 m/min |
| Drive Speed‑Stowed | 4‑6 m/min |
| Power System | |
| AC/DC Power (optional) | AC 2.2 kW / DC 6 V × 4 pcs, 200 Ah |
| Pump Motor Power | AC 2.2 kW / DC 3 kW |
| Control Voltage | 24 V |
| Hydraulic Tank Capacity | 60 L |
| Oil Cylinder | Japan NOK sealing rings |
| Slewing Bearing | Fully‑sealed dust‑proof slewing bearing |
| Tyre (Pneumatic) | 7.5/R16 |
| Hydraulic System | Solenoid valve, relief valve, etc. |
| Control Mode | Upper & lower dual‑control |
| Safety Valve | Cylinder overload protection |
| High‑pressure Hydraulic Hose | 2SN10‑53 MPa |
| Hydraulic Power Unit | KT6‑H |
| Charger | DC‑24 V |
| Hydraulic Motor | BMR‑160 |
| Boom Material | High‑strength special steel T700 |
| Colour | Orange‑red or customized |
| Optional Accessories | |
| One‑click Levelling | Optional |
| Basket Rotation | Optional |
| Dual Power Source | Optional |
| Self‑propel Assist | Optional |
| Model No. | OTCP12 | OTCP14 | OTCP16 | OTCP18 | OTCP20 | OTCP22 | OTCP24 |
| Working height | 12m | 14m | 16m | 18m | 20m | 22m | 24m |
| Platform height | 10m | 12m | 14m | 16m | 18m | 20m | 22m |
| Load capacity | 200kg | ||||||
| Platform size | 0.9 x 0.7m | ||||||
| Working radius | 5.5m | 6.5m | 8.5m | 10.5m | 11m | 11m | 11.5m |
| Net Weight | 1855kg | 2050kg | 2500kg | 2800kg | 3100kg | 3500kg | 3800kg |
| Overall Length | 5.2m | 6.2m | 5.6m | 6.5m | 6.5m | 6.5m | 6.5m |
| Overall Width | 1.7m | 1.7m | 1.7m | 1.8m | 1.8m | 1.8m | 1.8m |
| Overall Height Stowed | 2.1m | 2.1m | 2.1m | 2.3m | 2.3m | 2.3m | 2.3m |
| Outriggers Distance (Horizontal) | 3.0m | 3.6m | 3.6m | 3.9m | 3.9m | 3.9m | 3.9m |
| Outriggers Distance (Vertical) | 4.7m | 4.7m | 4.7m | 4.9m | 4.9m | 4.9m | 4.9m |
| Optional Powers | AC 110V-240V Electric Power, DC Battery Power, Diesel Power, Gasoline Power, Hybrid Powers To Meet the Requests Of Customers. | ||||||
• Working Height Scope: 12m-24m
• Multiple Powers: AC 110V-240V; DC Battery Power; Diesel Power; Petrol Power; Dual Powers Optional.
• 360° Continuous Rotation with Speed Reducer Motor To Keep its Stability.

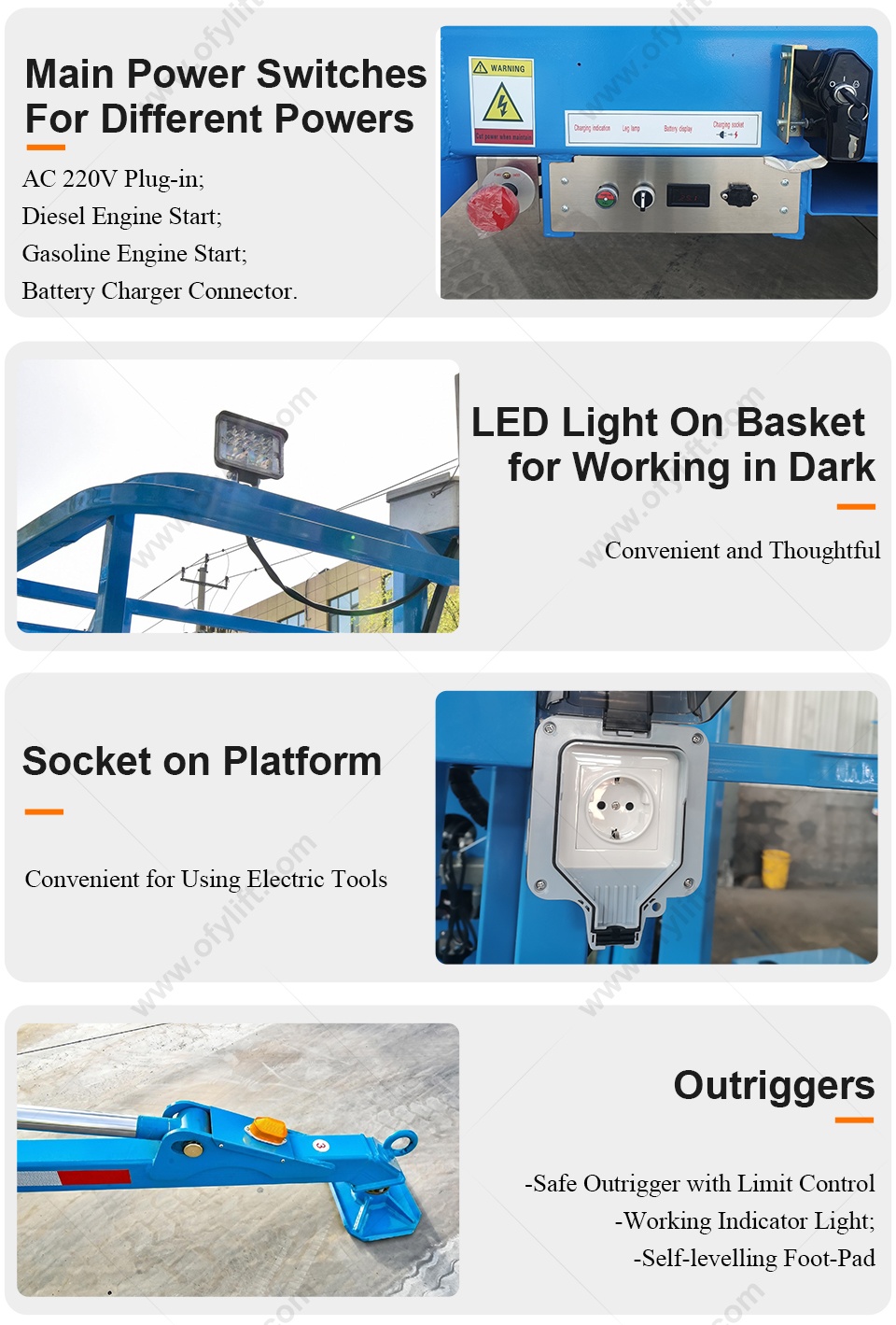

• Intelligent Hydraulic Outriggers with Sensors and Self-levelling Foot Pads.
• Automatic Self-levelling and Anti-pinch Man Basket.

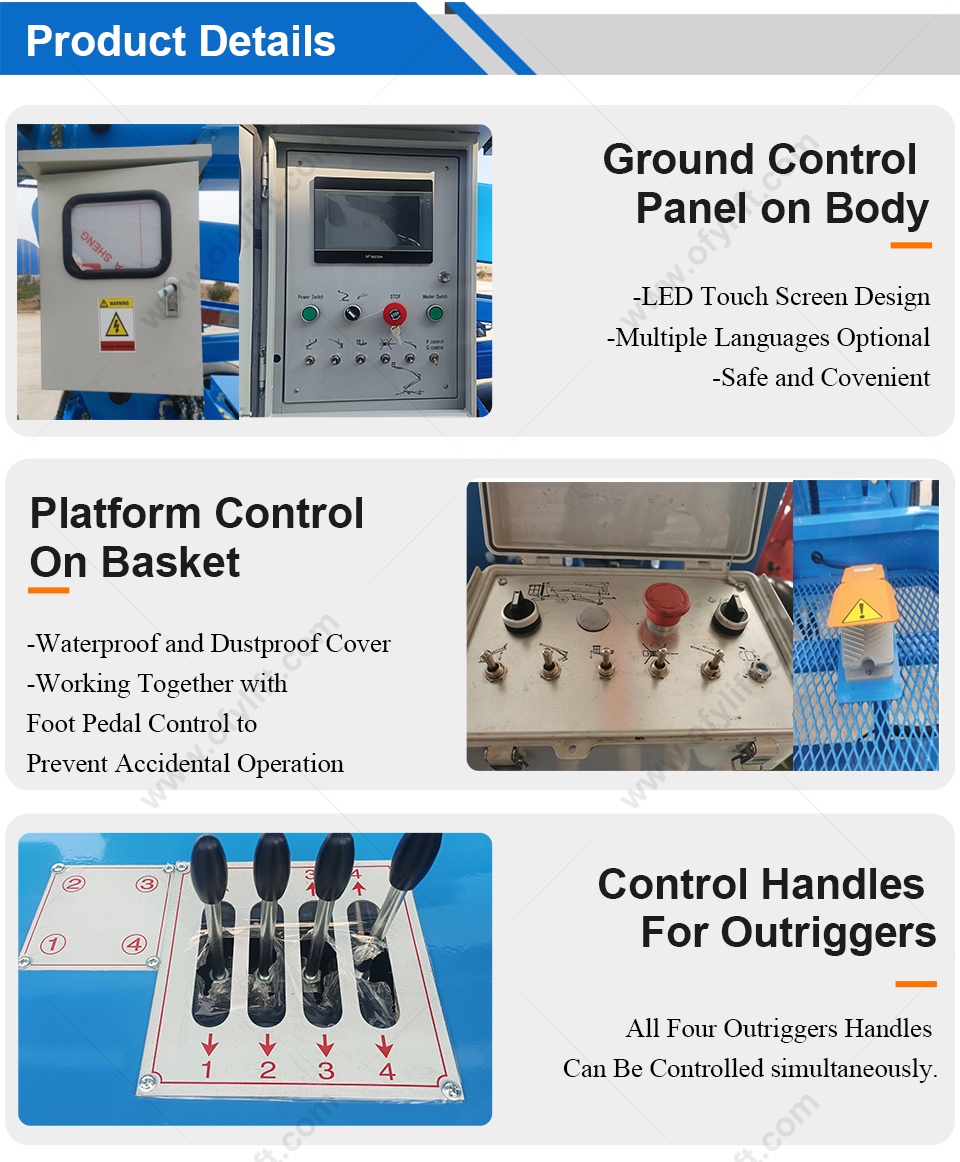

• Two Control Ways: Platform Controlling and Ground Controlling, Safe and Convenient.
• The Platform Control Includes a Foot Pedal to Prevent Accidental Operation.
• Ground Control Uses a Touchscreen Control Panel. It Can Be Customized Didfferent Languages.
• Waterproof and DustProof Control Panels and Electric Control Box
• Thoughtful Design On Chassis for Easy Maintenance and Repair
• Overload Protection System
• Germany ALKO Brand Brakes and Tractors
• Optional Mechanical Brakes and Electromagnetic Brakes to Meet Different Requests from Different Country
• High-end Engineering Machinery Hydraulic Cylinders with Balance Valve
• Smart Tilt sensor to Ensure the Safe Operation
• Hydraulic System Explosion-proof Valve
• Emergency Lowering System
• Anti-dropping System
