| Category | Item | Description | Value |
|---|---|---|---|
| Dimensions | 1 | Max. Working Height | 12-22 m |
| 2 | Max. Platform Height | 10-20 m | |
| 3 | Working Outreach | 5.5-13 m | |
| 4 | Platform Size | 700 / 900 / 1100 mm | |
| 5 | Overall Length (Stowed) | 6900 mm (For full‑container shipping) | |
| 6 | Overall Width (Stowed) | 1000‑1300 mm (Customizable) | |
| 7 | Overall Height (Stowed) | 2300 mm | |
| Weight | 1 | Total Weight | 4500 kg |
| Performance | 1 | Safe Working Load | 200 kg |
| 2 | Max. Occupants | 2 persons | |
| 3 | Turret Rotation | 360° Continuous Rotation | |
| 4 | Travel Speed | 3 km/h | |
| 5 | Gradeability | 25° | |
| 6 | Ground Clearance | 330 mm | |
| 7 | Driving Speed (Raised) | 4‑6 m/min | |
| 8 | Driving Speed (Stowed) | 4‑6 m/min | |
| Power & Hydraulic System | 1 | DC Power Supply | 96V 150Ah |
| 2 | Pump Motor Power | 7.5 kW | |
| 3 | Control Voltage | 24V | |
| 4 | Hydraulic Tank Capacity | 75 L | |
| 5 | Cylinder Seal | Japan NOK Seal | |
| 6 | Slew Bearing | Fully‑sealed Dust‑proof Rotation | |
| 7 | Track | Shock‑absorbing Crawler Track | |
| 8 | Hydraulic Components | Solenoid Valve, Overflow Valve etc. | |
| 9 | Control Mode | Upper & Lower Dual Controls | |
| 10 | Safety Valve | Cylinder Protection | |
| 11 | High‑pressure Oil Pipe | 2SN10‑53MPa | |
| 12 | Hydraulic Station | KT6‑H | |
| 13 | Charger | DC‑96V | |
| 14 | Hydraulic Motor | BMR‑160 | |
| Appearance | 1 | Color | Orange‑red or Customized |
| Optional Accessories | 1 | One‑click Auto‑leveling | Optional |
| 2 | Basket Rotation | Optional | |
| 3 | Dual‑power System | Optional |
Optional Functions
One-click automatic outrigger leveling
Platform basket 360° rotation
Dual power system (optional)
Features & Advantages
Full electric drive design achieves zero emissions, ultra-low noise and eco-friendly operation, suitable for indoor and green construction sites.

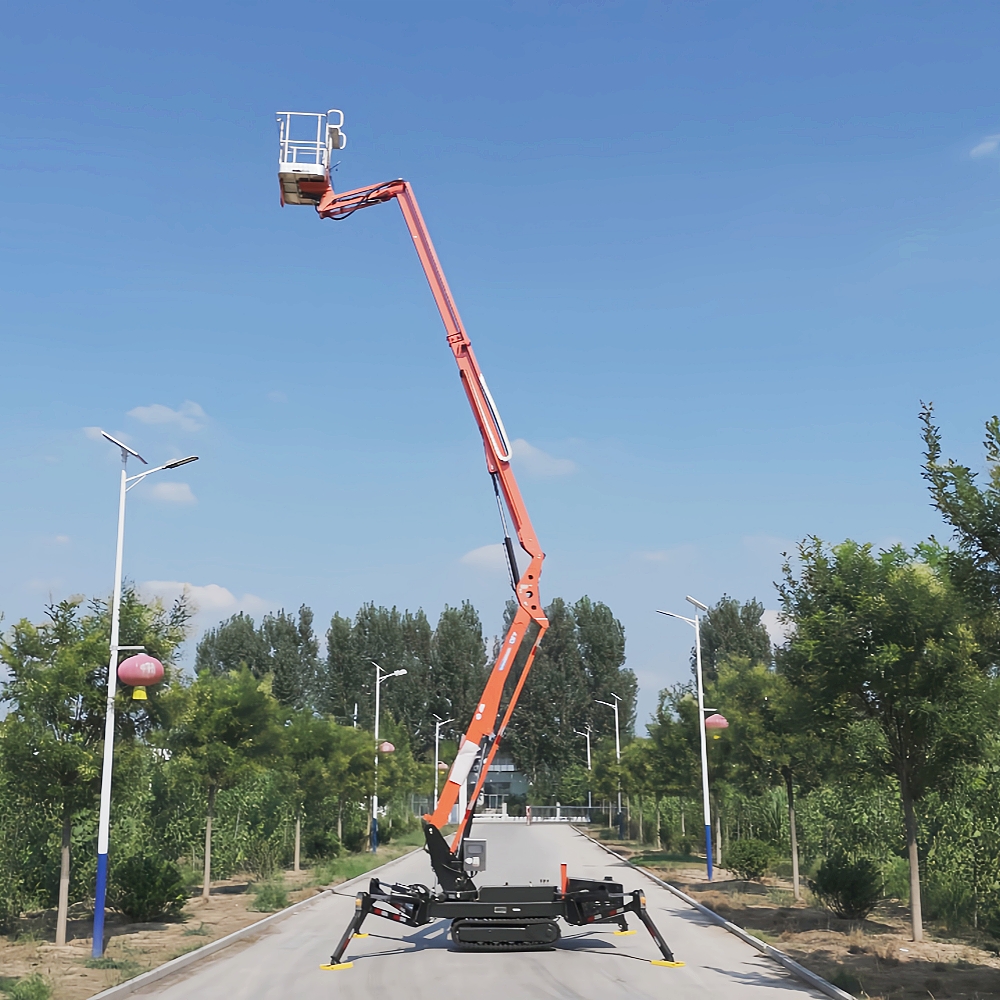

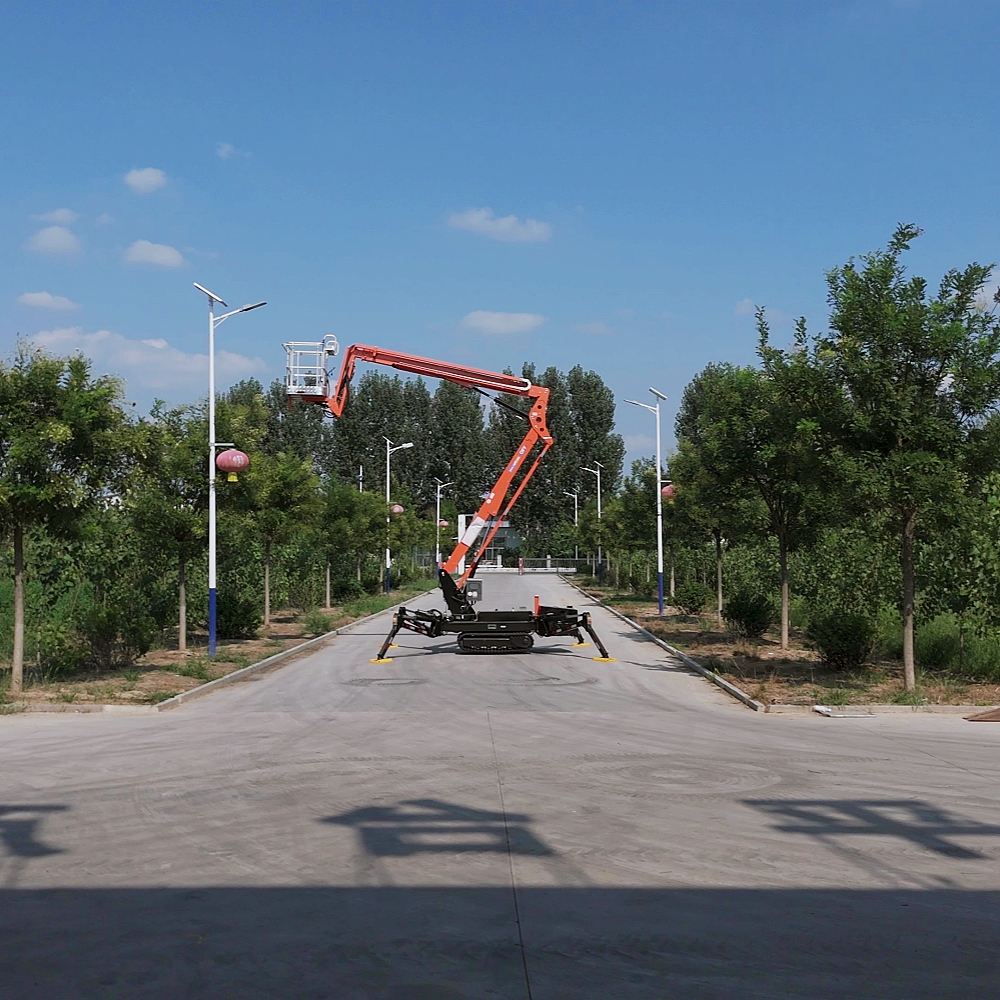

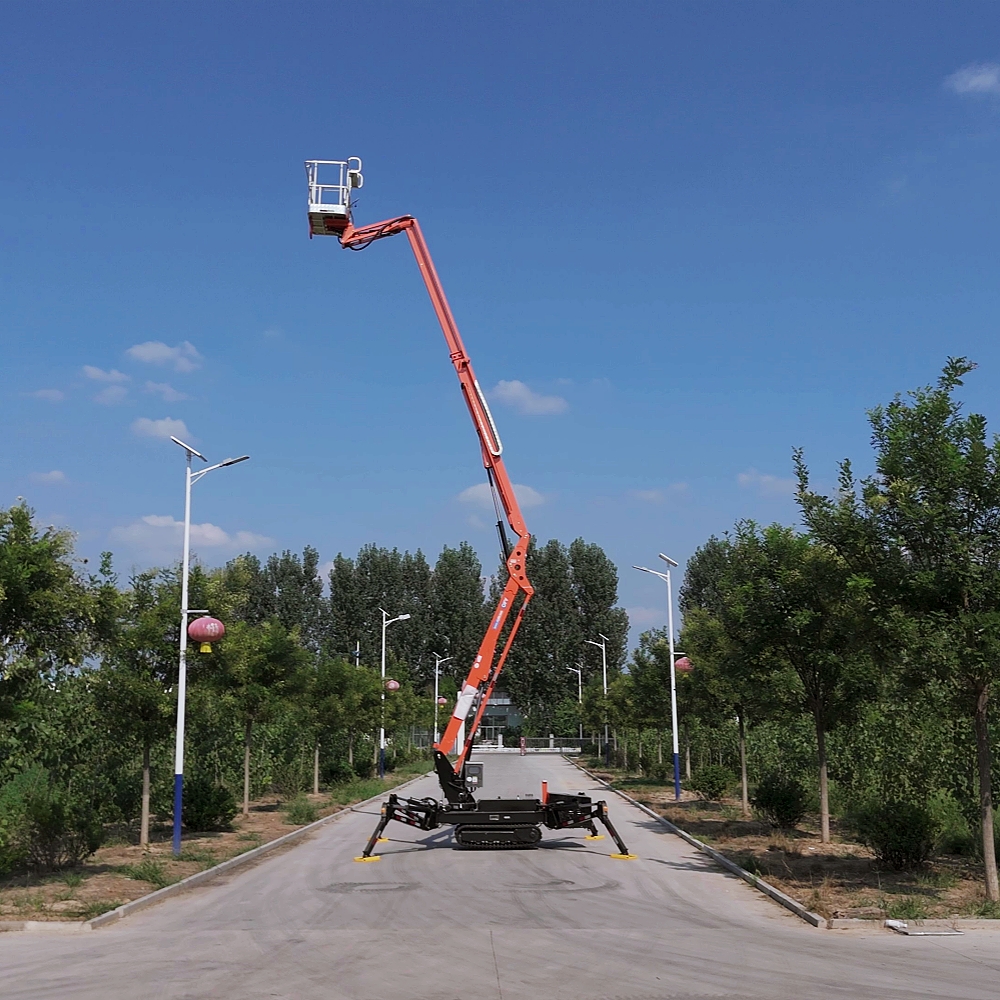

Premium articulated boom structure enables flexible obstacle crossing, perfectly adapting to complex and narrow working environments.
360° continuous turntable rotation provides all-round working coverage and greatly boosts operating efficiency.

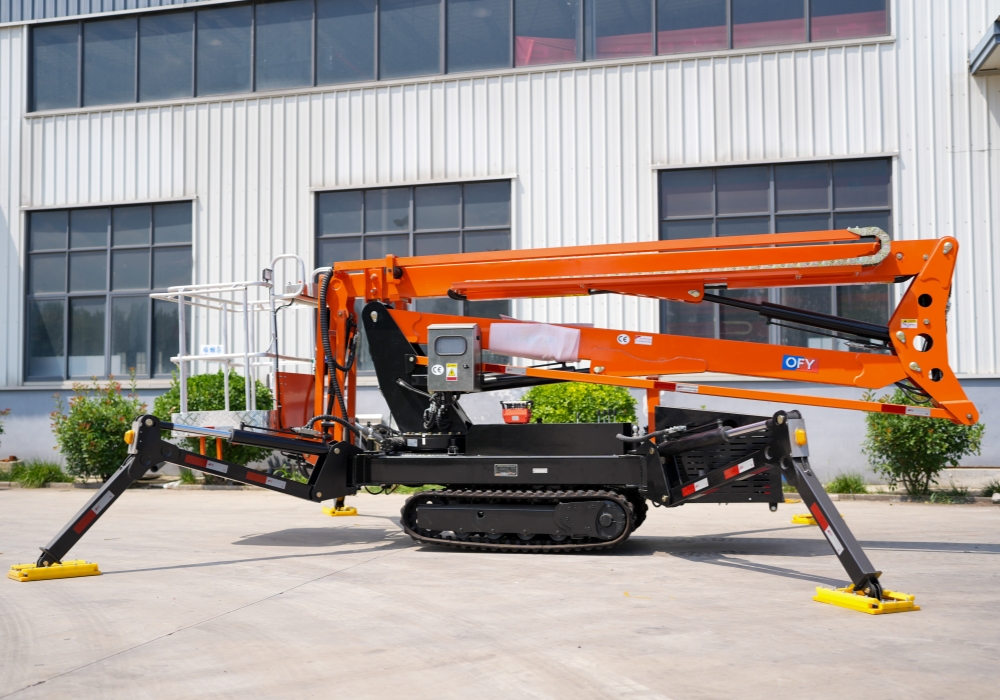

Equipped with shock-absorbing crawler chassis, it delivers excellent stability and strong adaptability on rough roads, slopes and uneven ground.
Dual upper and lower control system ensures flexible, precise and convenient operation for different working scenarios.
Equipped with complete multi-level safety protection mechanisms, effectively guaranteeing stable and safe high-altitude operation.
Compact folded structure saves storage and transportation space, supporting standard container shipping and convenient on-site transfer.
