Max Platform Height: 14 Meters
Max Working Height: 12Meters
Loading Capacity: 150kg
Platform Size: 670*660mm
Power: Rechargeable Battery (DC) / 220‑110V Mains Power (AC)
Suitable for 1 Workers Use
Automatic Walking Mode
Certificate: CE,ISO,ROHS,Saber
| Category | Item | Description | GTWY1‑5 | GTWY1‑6 | GTWY1‑8 | GTWY1‑9 | GTWY1‑10 | GTWY1‑12 |
|---|---|---|---|---|---|---|---|---|
| Dimensions | 1 | Max. Working Height | 6.7 m | 8.1 m | 9.6 m | 11 m | 12.4 m | 14 m |
| 2 | Max. Platform Height | 4.7 m | 6.1 m | 7.6 m | 9 m | 10.4 m | 12 m | |
| 3 | Overall Length | 1.26 m | 1.26 m | 1.3 m | 1.35 m | 1.4 m | 1.42 m | |
| 4 | Overall Width | 0.76 m | 0.76 m | 0.76 m | 0.76 m | 0.76 m | 0.76 m | |
| 5 | Overall Height | 1.99 m | 1.99 m | 1.99 m | 1.99 m | 1.99 m | 2.78 m | |
| 6 | Platform Size (Length × Width) | 0.67×0.66 m | 0.67×0.66 m | 0.67×0.66 m | 0.67×0.66 m | 0.67×0.66 m | 0.67×0.66 m | |
| 7 | Outrigger Coverage | 1.9×1.8 m | 1.9×1.8 m | 1.9×1.8 m | 2.1×2 m | 2.1×2 m | 2.4×2.2 m | |
| Weight | 1 | AC Version | 330 kg | 345 kg | 385 kg | 410 kg | 430 kg | 520 kg |
| 2 | DC Version | 380 kg | 395 kg | 435 kg | 460 kg | 480 kg | 572 kg | |
| Performance | 1 | Safe Working Load | 150 kg | 150 kg | 150 kg | 150 kg | 136 kg | 120 kg |
| 2 | Max. Occupants (Indoor) | 1 | 1 | 1 | 1 | 1 | 1 | |
| Power System | 1 | DC Power (Optional) | 12V | 12V | 12V | 12V | 12V | 12V |
| 2 | Charger | 12V/15A | 12V/15A | 12V/15A | 12V/15A | 12V/15A | 12V/15A | |
| 3 | DC Motor | 1.5 kW | 1.5 kW | 1.5 kW | 1.5 kW | 1.5 kW | 1.5 kW | |
| 4 | AC Power Supply | 220V/110V | 220V/110V | 220V/110V | 220V/110V | 220V/110V | 220V/110V | |
| 5 | AC Motor | 1.5 kW | 1.5 kW | 1.5 kW | 1.5 kW | 1.5 kW | 1.5 kW |

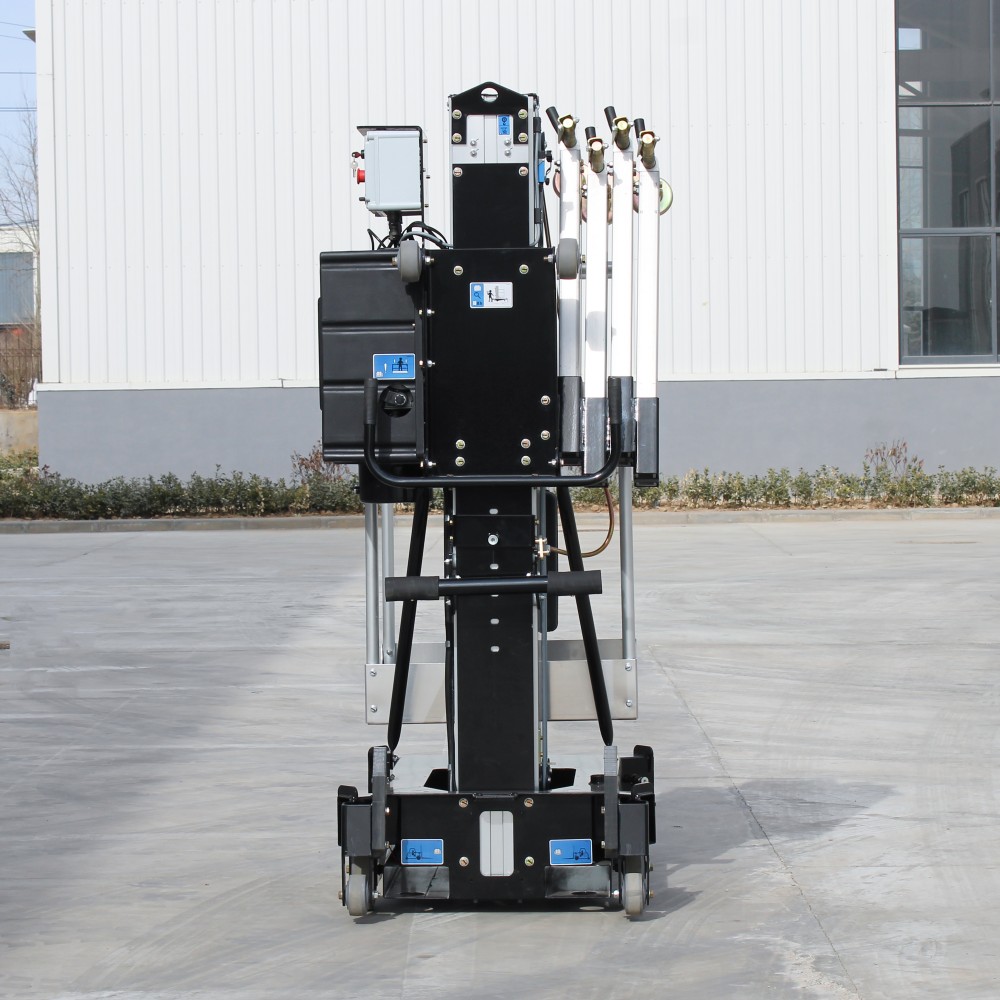

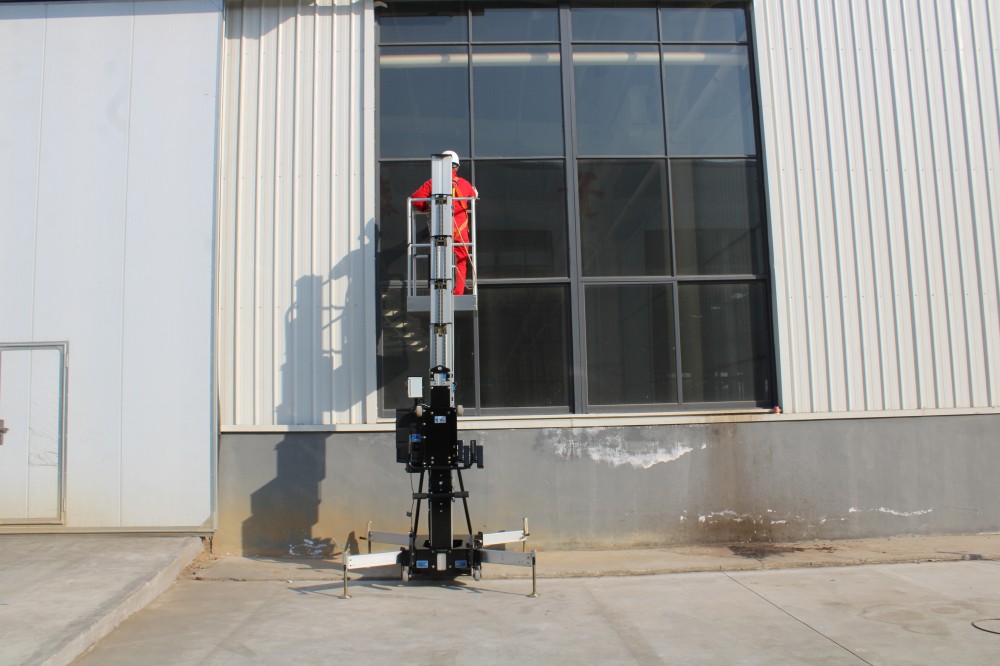

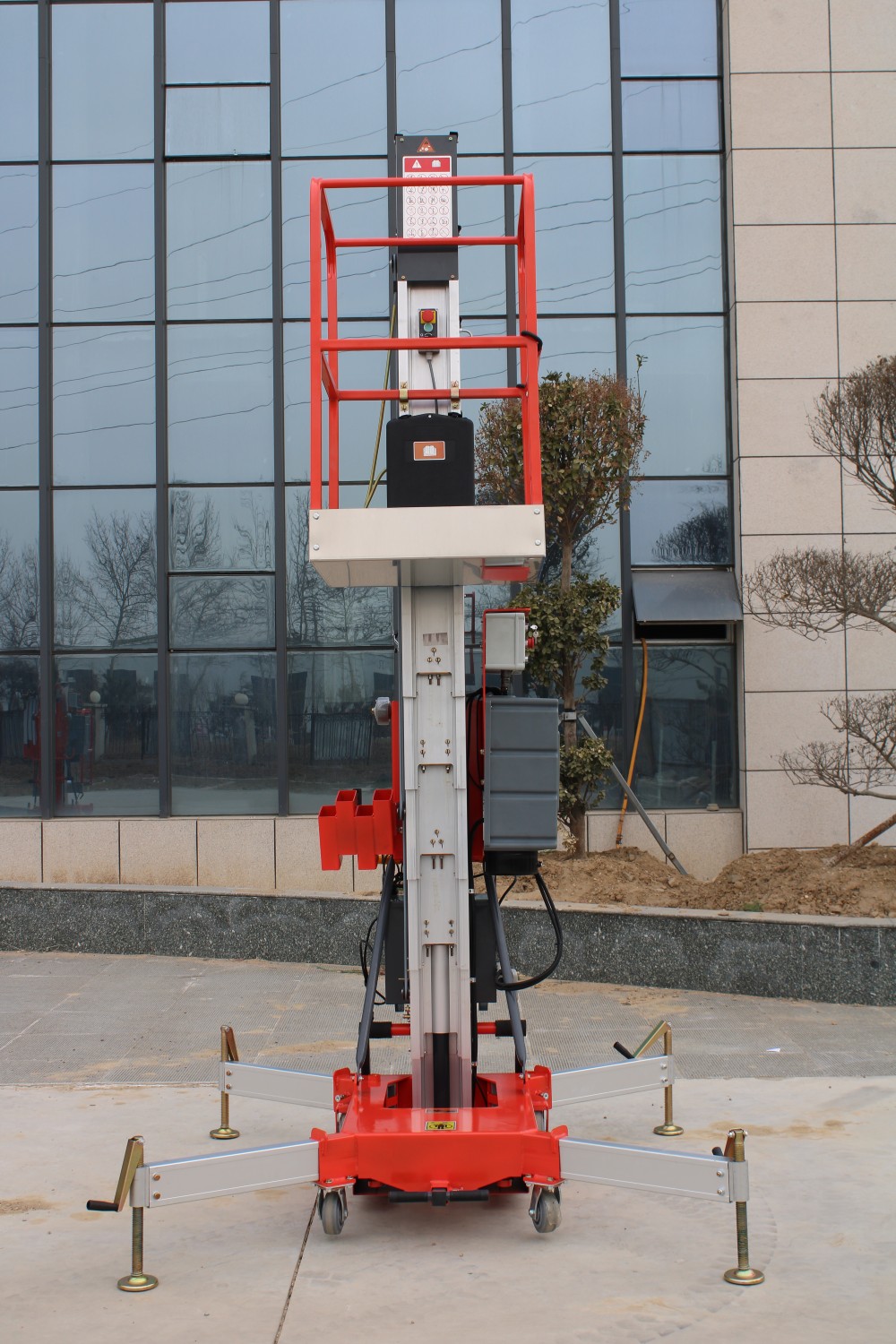

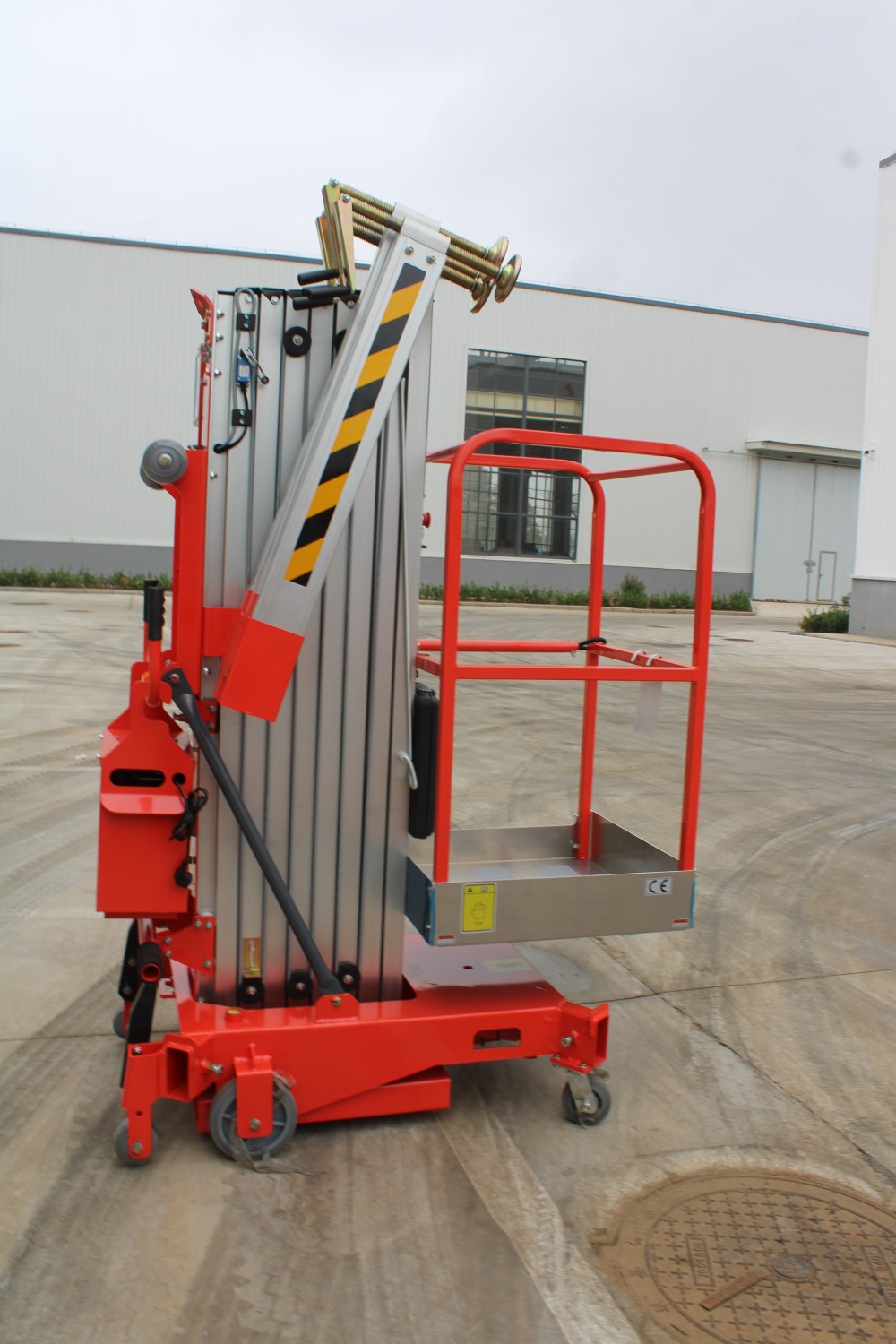

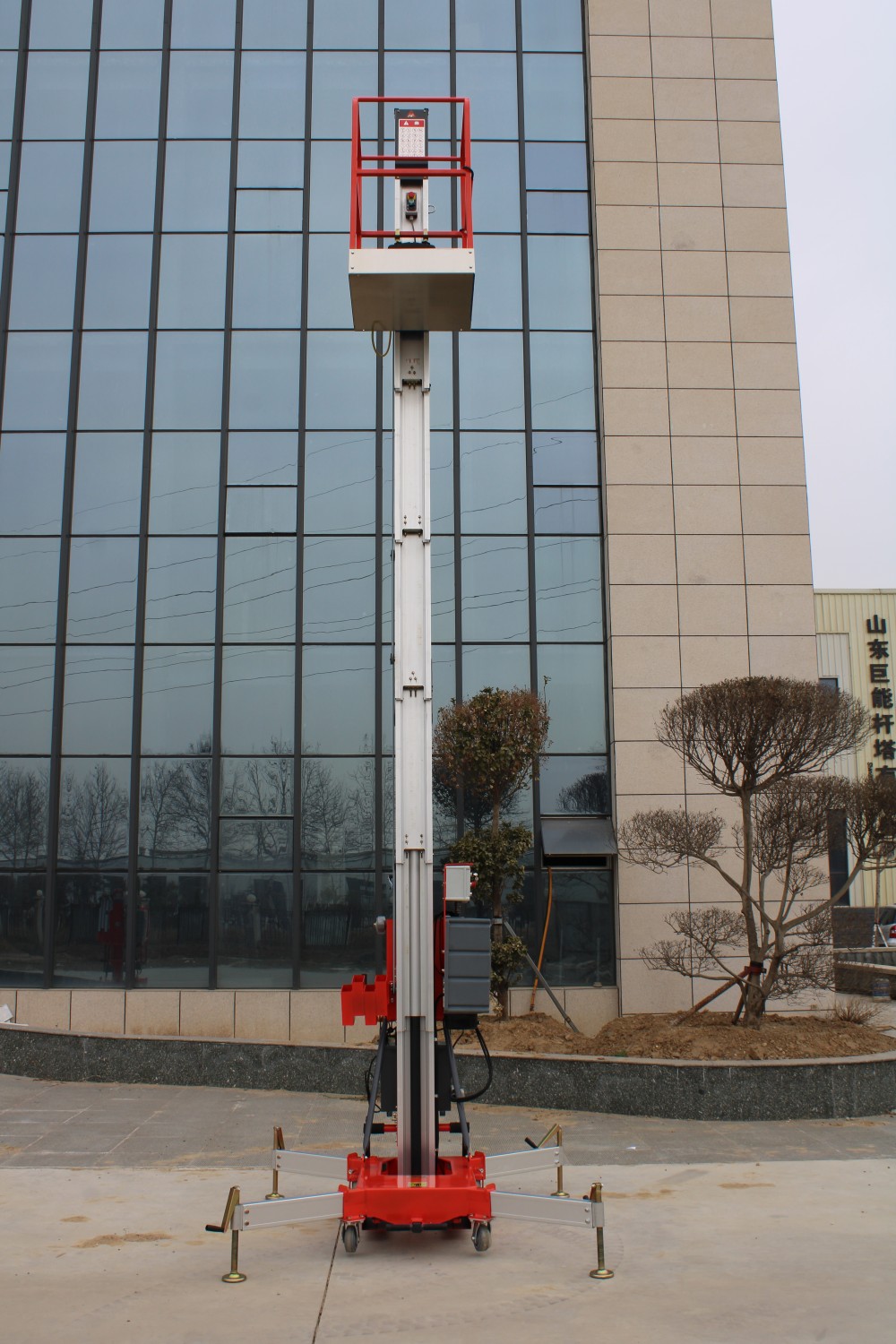

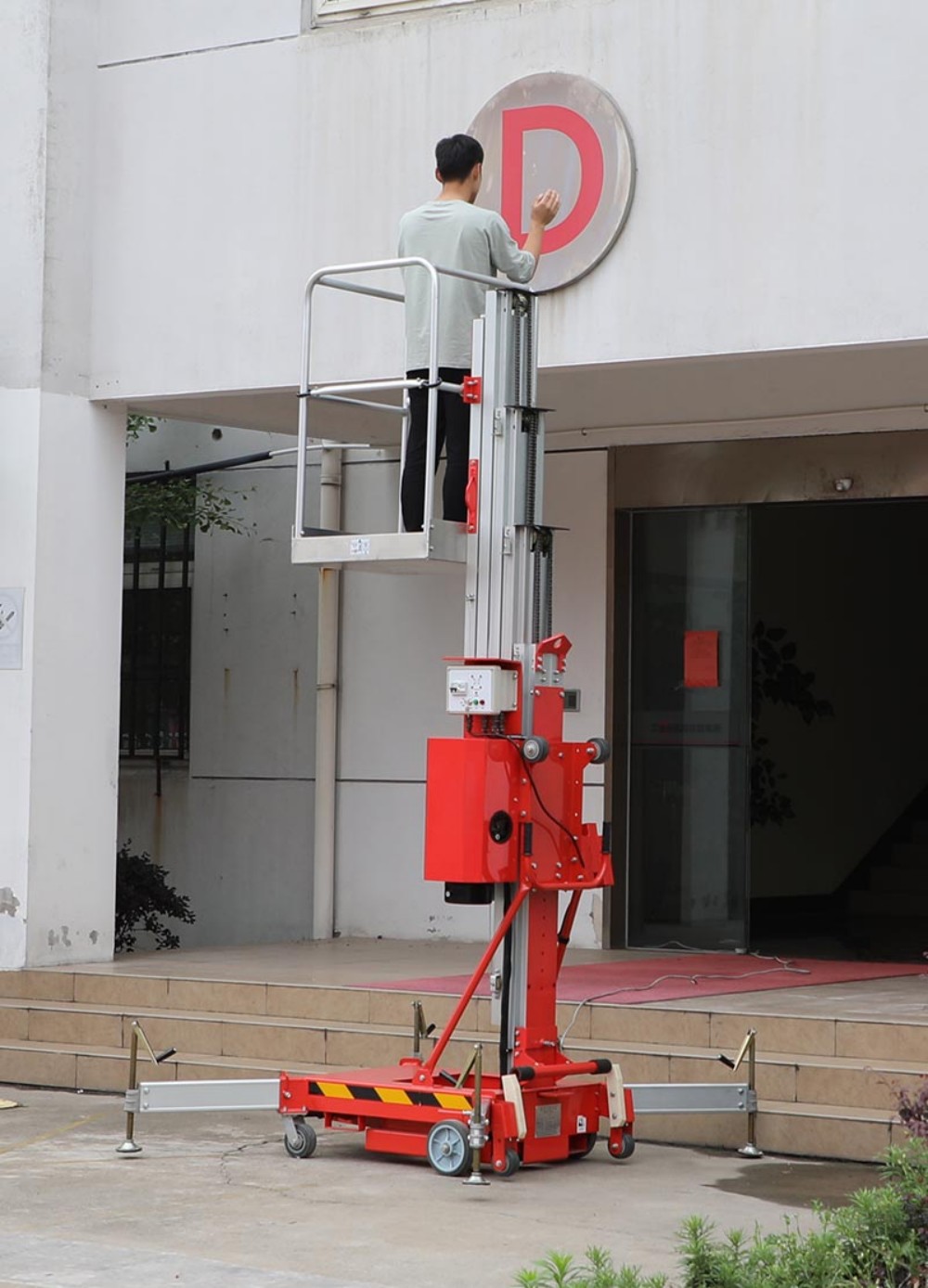

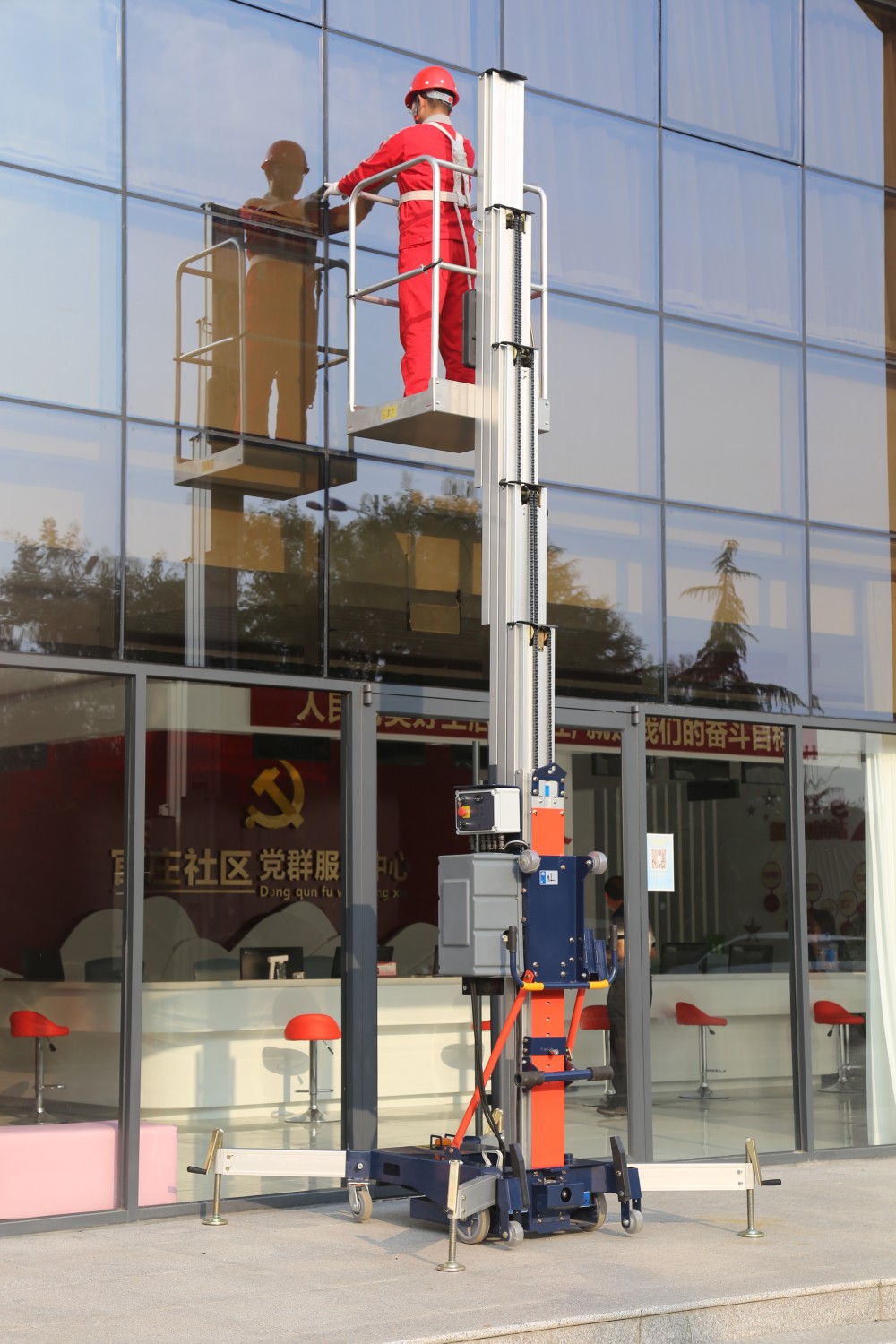

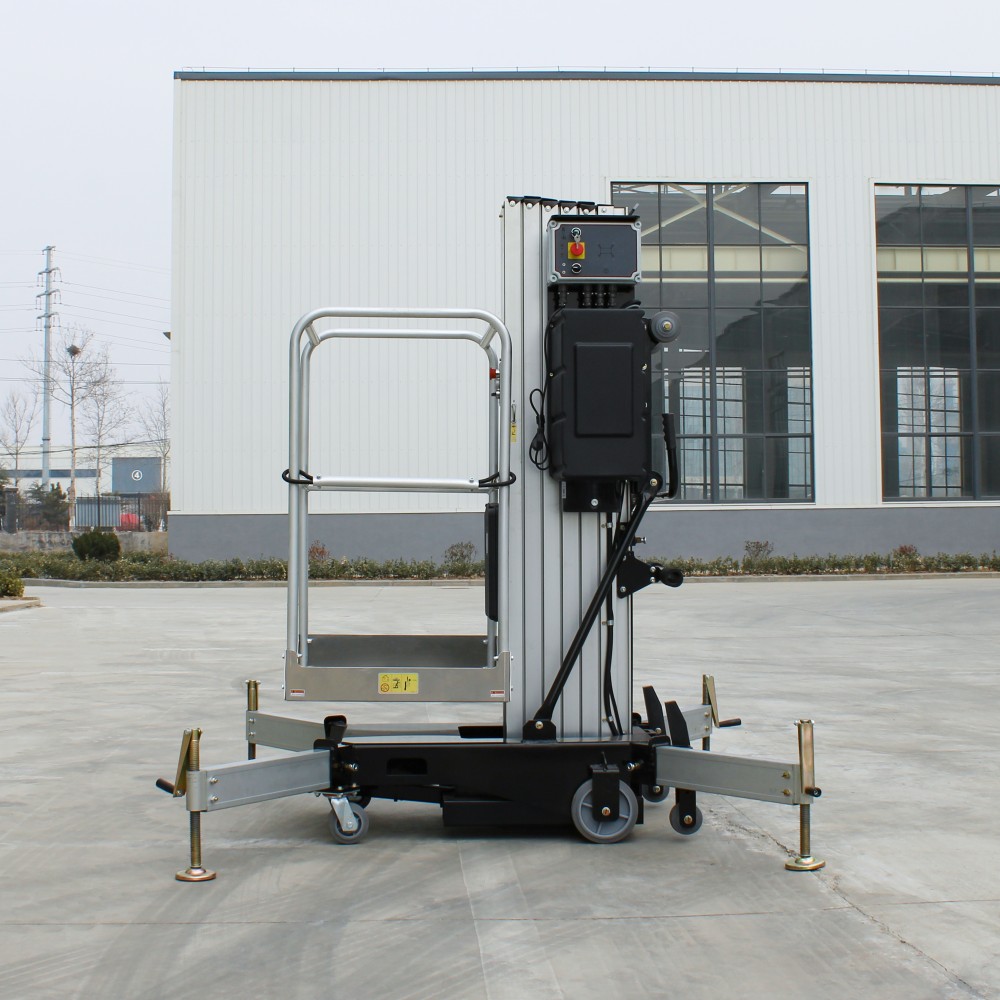

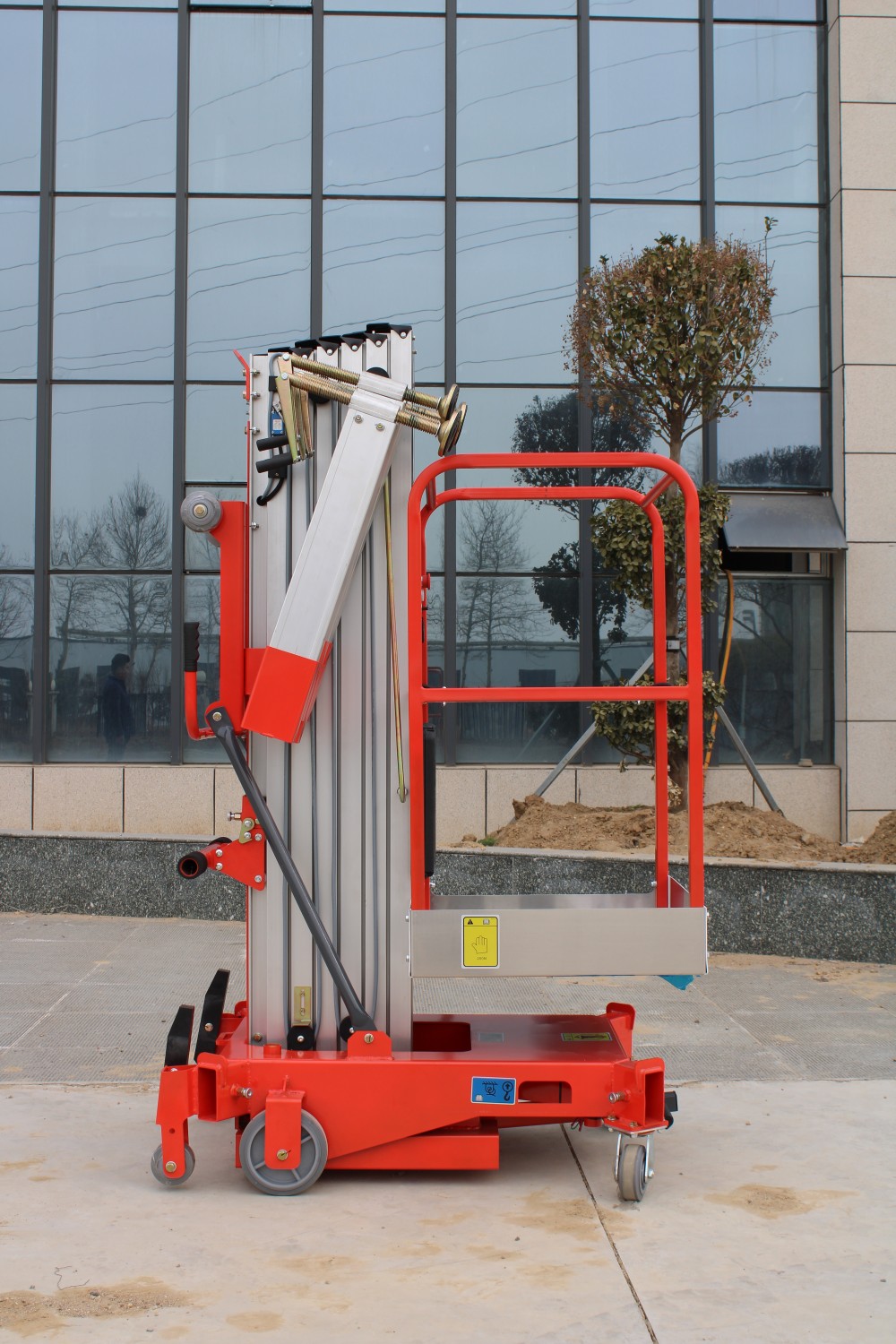

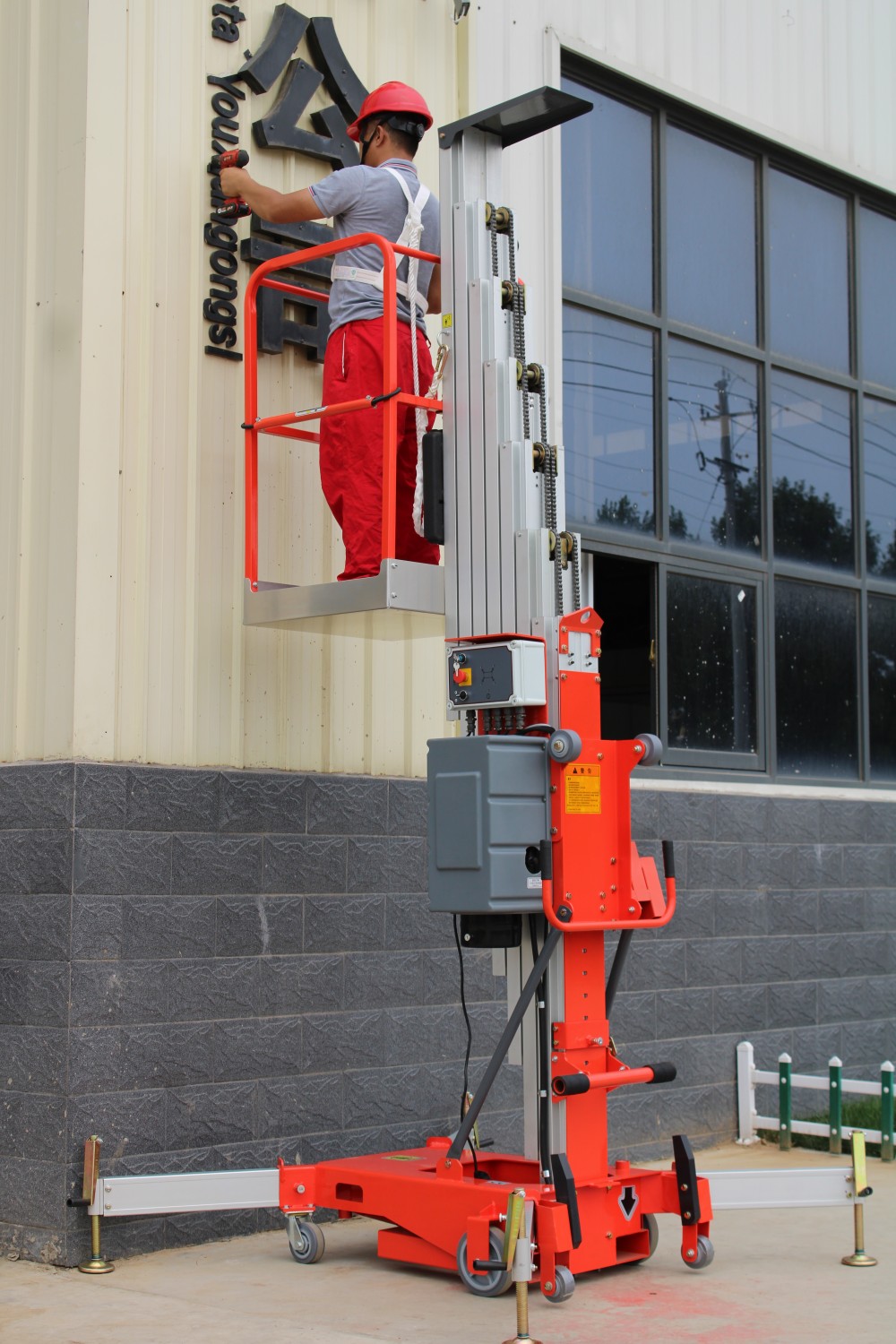

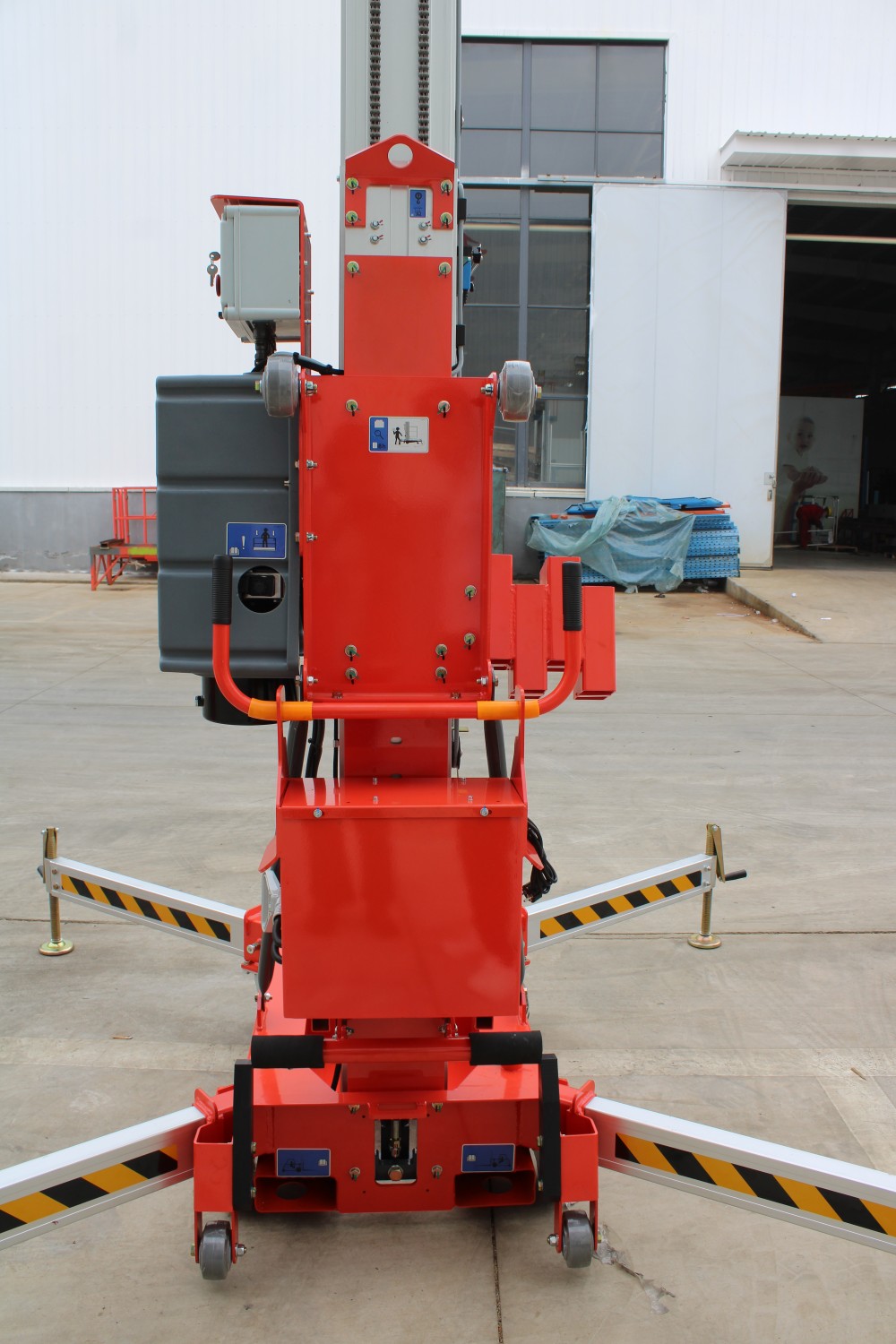

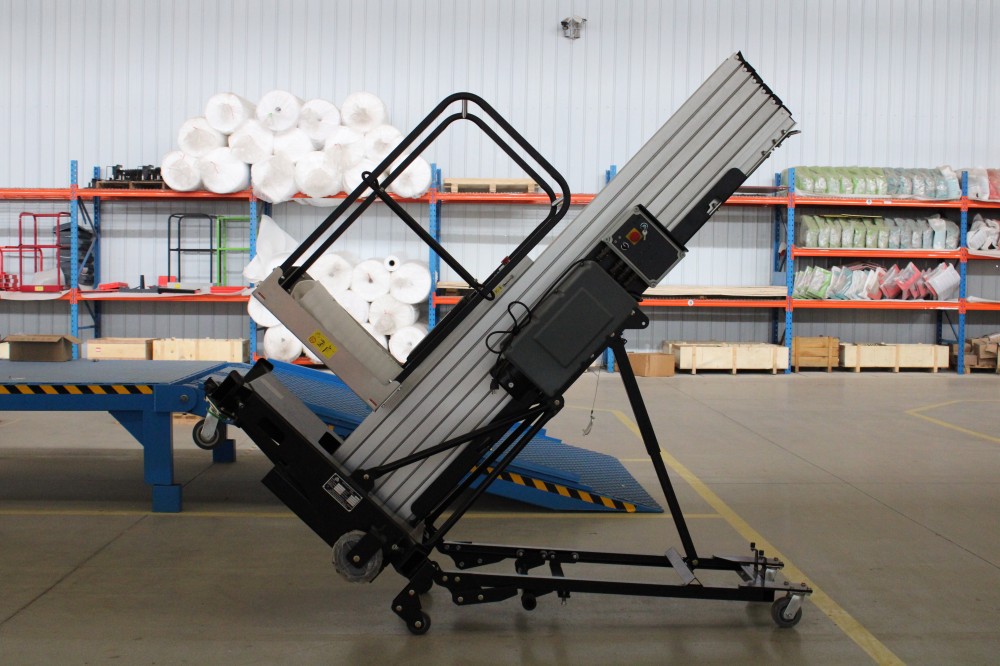

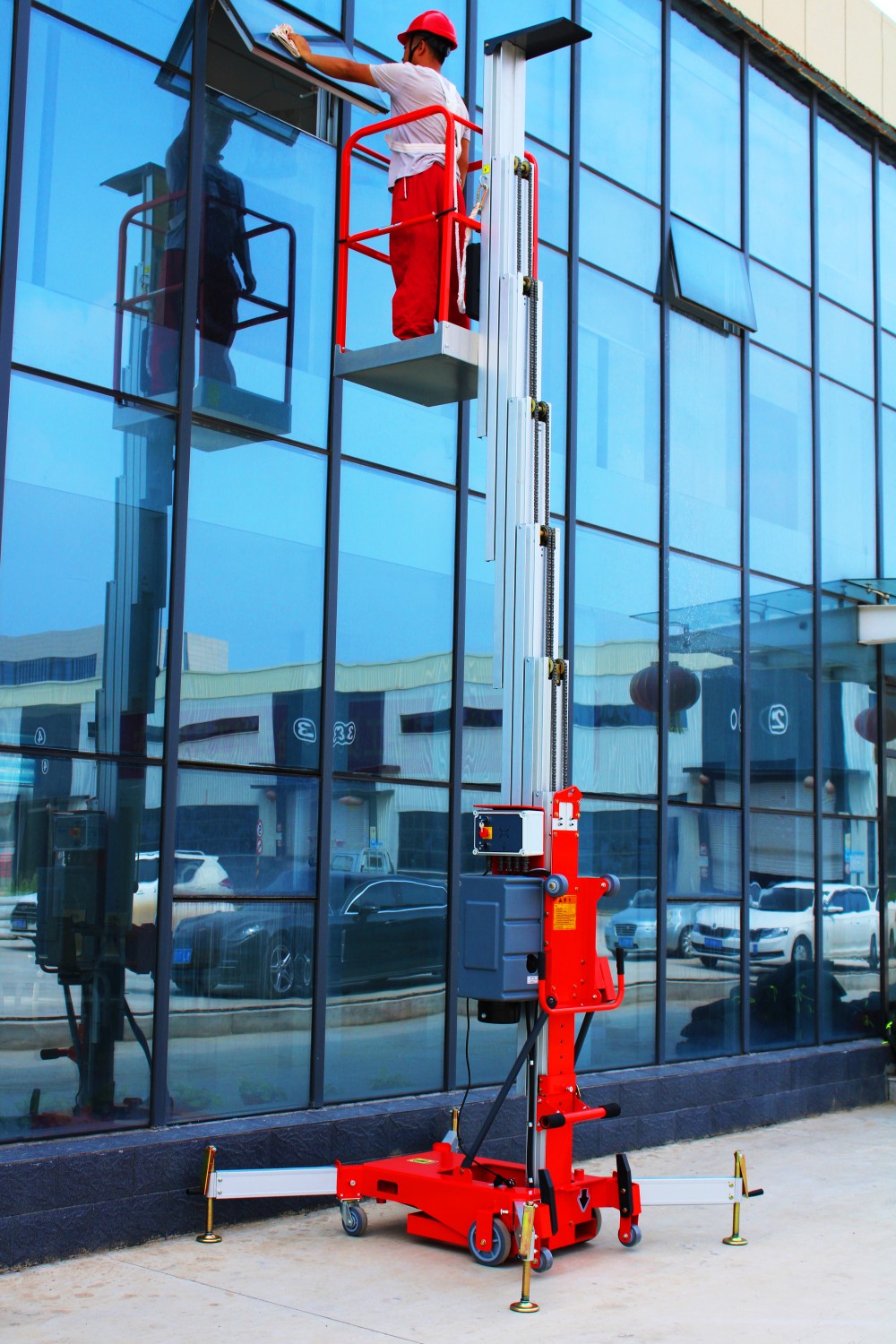

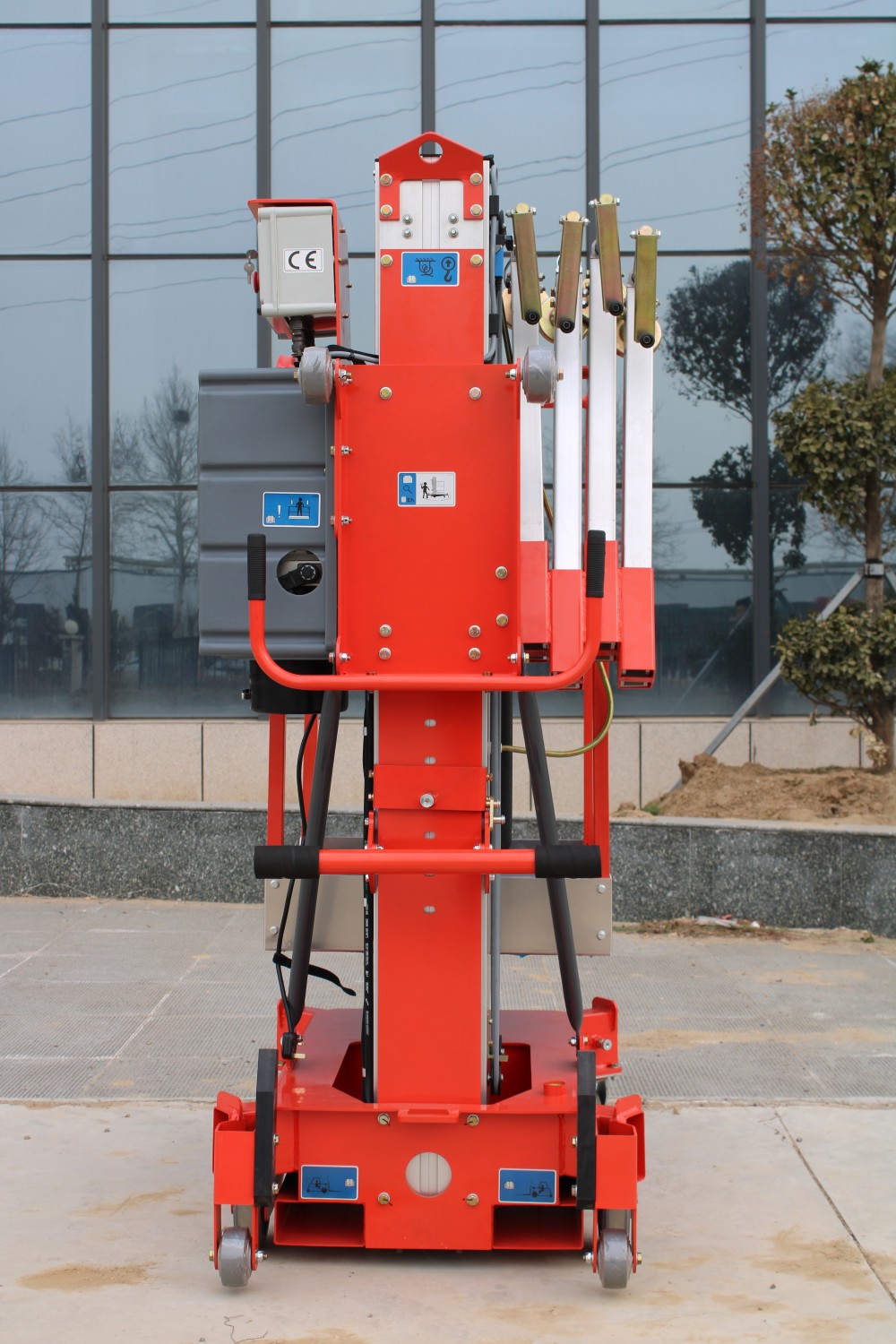

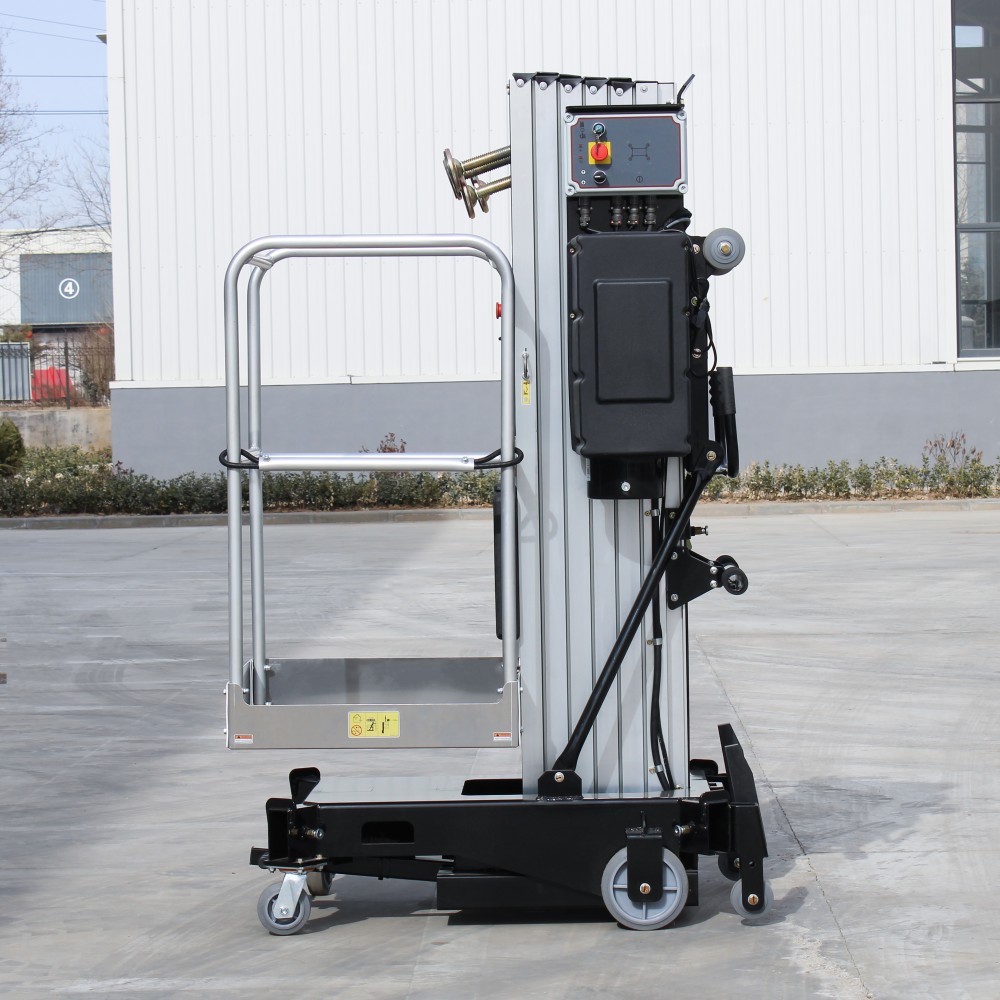

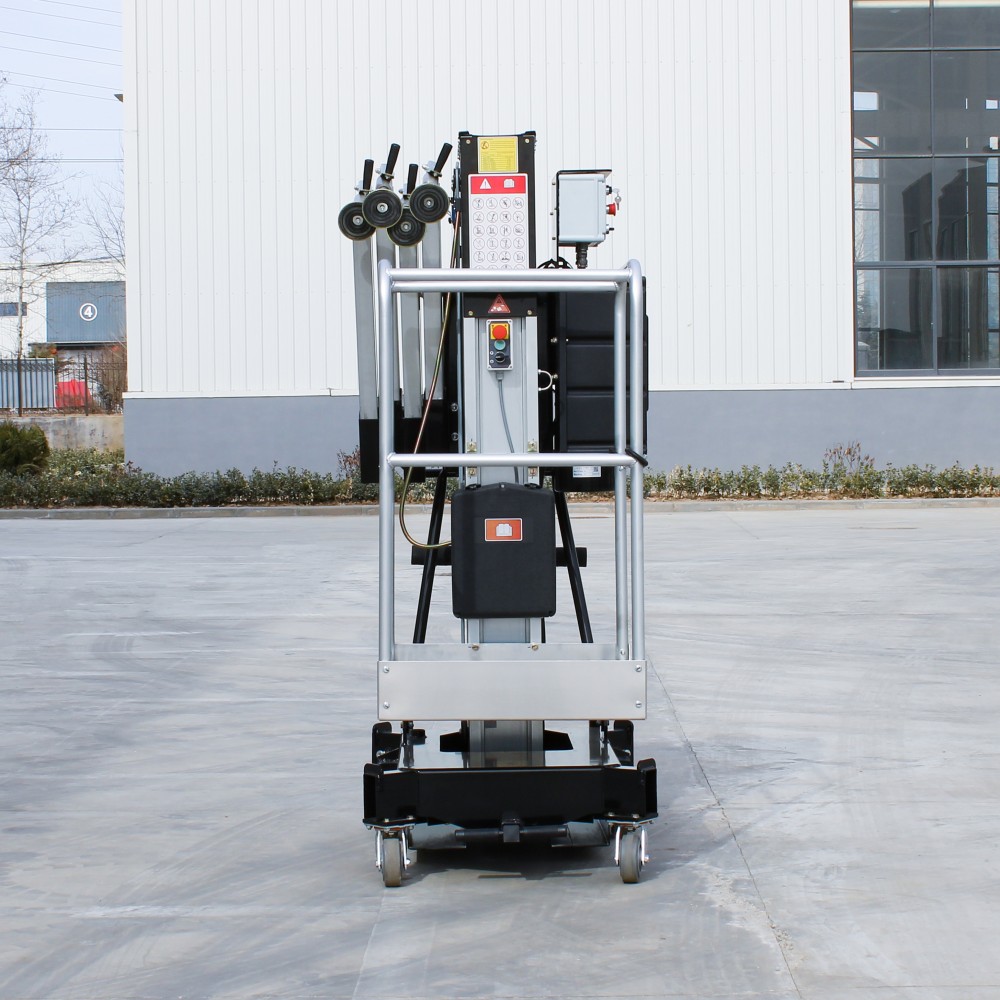

The Single Mast Vertical Lift (GTWY1 series) is a lightweight, compact aerial work platform. With a narrow‑width 0.76‑meter chassis, it can easily pass through narrow doorways and aisles, which is ideal for indoor maintenance, cleaning, inspection and overhead installation work. It offers multiple working height options ranging from 6.7 m up to 14 m. Both AC and DC power configurations are available to meet different site requirements. Hydraulic outriggers provide stable support during lifting operation for safe single‑person aerial tasks.
