Max Platform Height: 10.5 Meters
Max Working Height: 12.5 Meters
Loading Capacity: 200kg
Platform Size: 800*930mm
Power: Rechargeable Battery
Suitable for 2 Workers Use
Automatic Walking Mode
Certificate: CE,ISO,ROHS,Saber
| Category | Item | Description | Value |
|---|---|---|---|
| Dimensions | 1 | Max. Working Height | 12.5 m |
| 2 | Max. Platform Height | 10.5 m | |
| 3 | Max. Horizontal Reach | 6 m | |
| 4 | Max. Up And Over Clearance | 7.15 m | |
| 5 | Overall Length | 3.72 m | |
| 6 | Overall Width | 1.2 m | |
| 7 | Overall Height (stowed) | 1.99 m | |
| 8 | Platform Size (Length × Width) | 0.8 × 0.93 m | |
| 9 | Ground Clearance (Stowed) | 80 mm | |
| 10 | Ground Clearance (Raised) | 80 mm | |
| 11 | Wheelbase | 1.55 m | |
| 12 | Tyres | Φ457×178 mm | |
| Weight | 1 | Weight | 5020 kg |
| Performance | 1 | Safe Working Load | 200 kg |
| 2 | Max. Occupants (Indoor / Outdoor) | 2 / 1 | |
| 3 | Gradeability | 30% | |

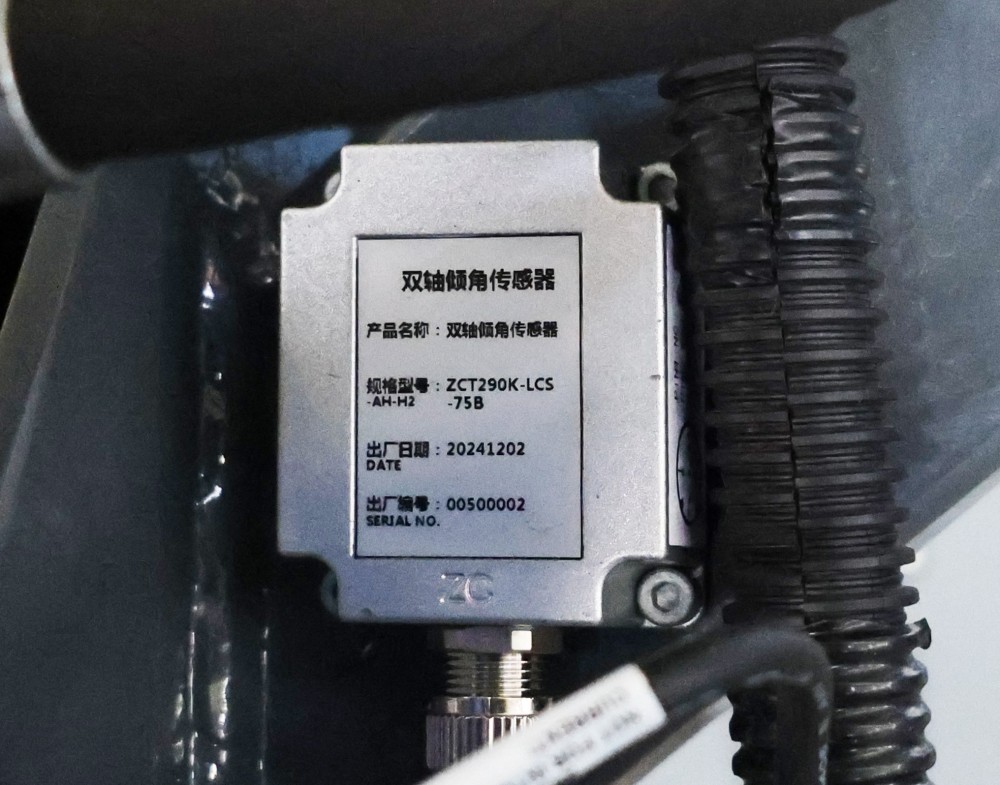

| 4 | Max. Working Slope (X/Y) | X‑2°, Y‑2° | |
| 5 | Turret Rotation | 352° | |
| 6 | Jib Movement | ±60° | |
| 7 | Travel Speed (Stowed) | 4.5 km/h | |
| 8 | Travel Speed (Raised) | 0.7 km/h | |
| Power System | 1 | Battery | 48V/260Ah |
| 2 | Charger | 48V/35A | |

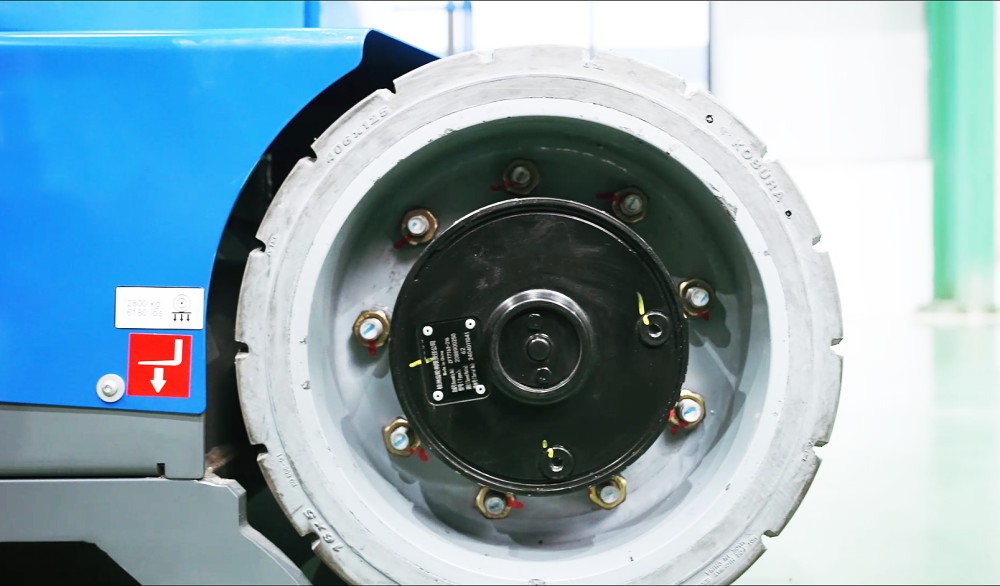

| 3 | Driving Motor | 48V/2.5 kW | |

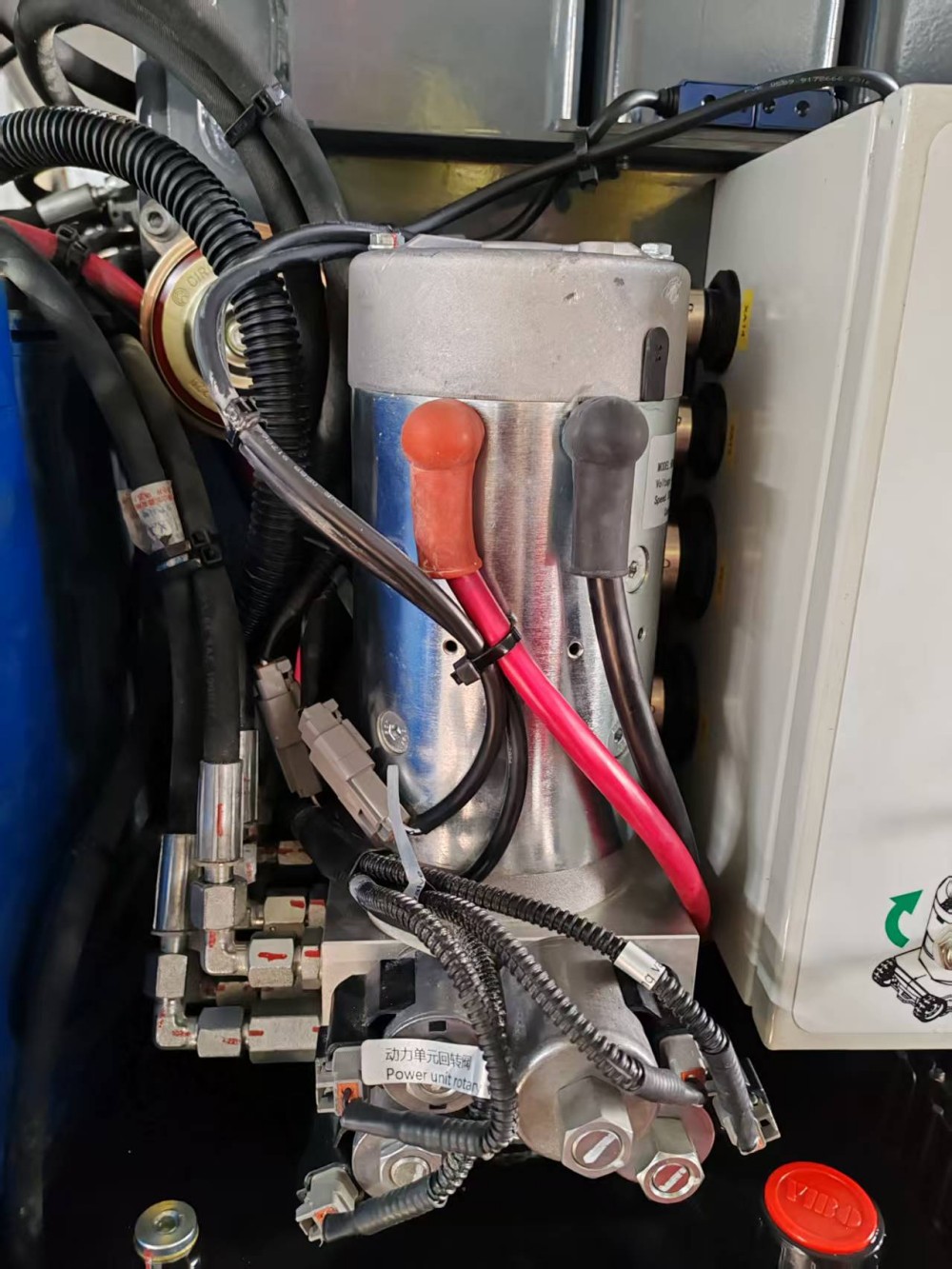

| 4 | Lifting Motor | 48V/3 kW |
