Max Platform Height: 3 Meters
Max Working Height: 5 Meters
Loading Capacity: 300kg
Platform Size: 1170*600*1100mm
Power: Rechargeable Battery
Automatic Walking Mode
Certificate: CE,ISO,ROHS,Saber

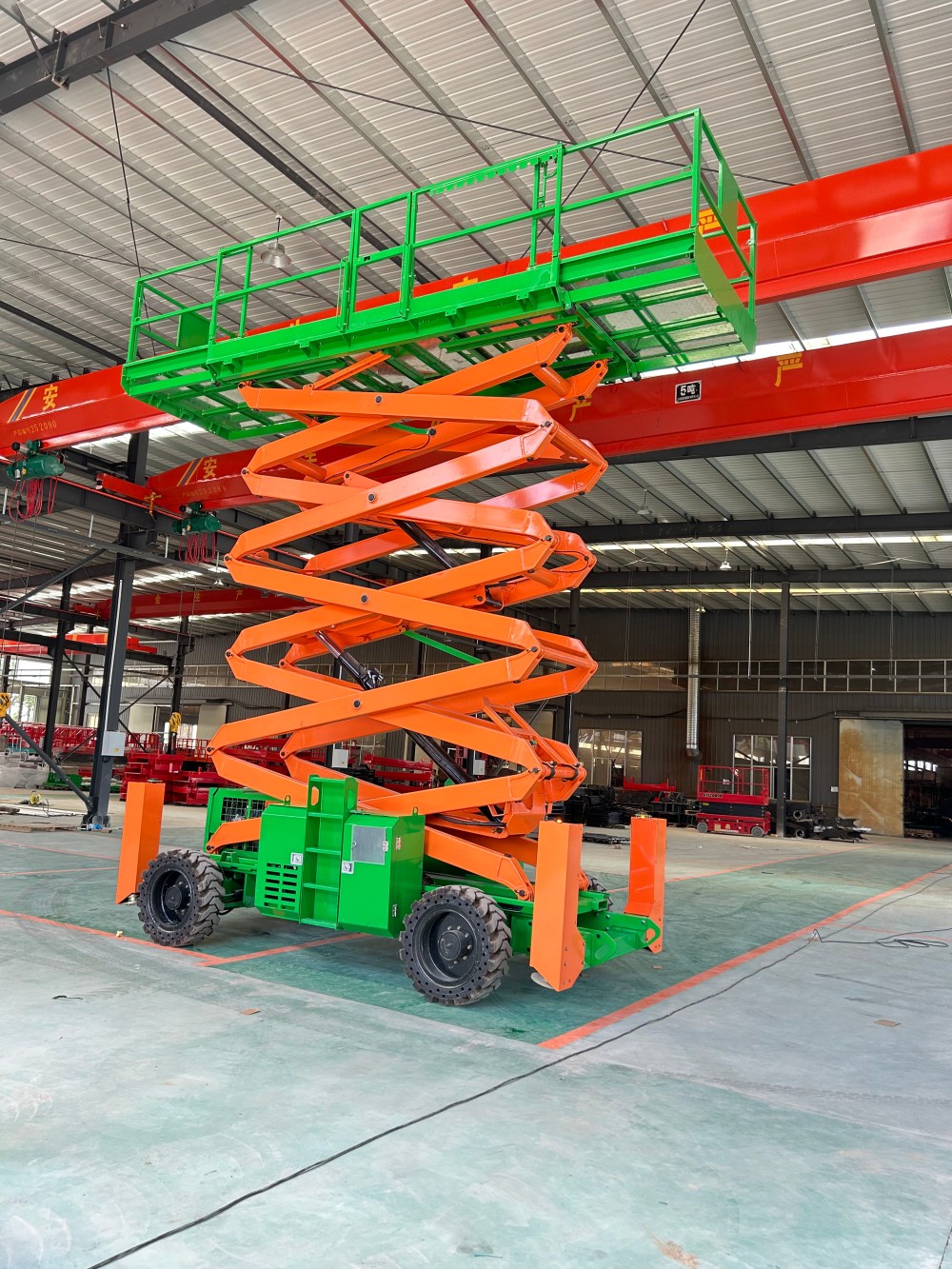

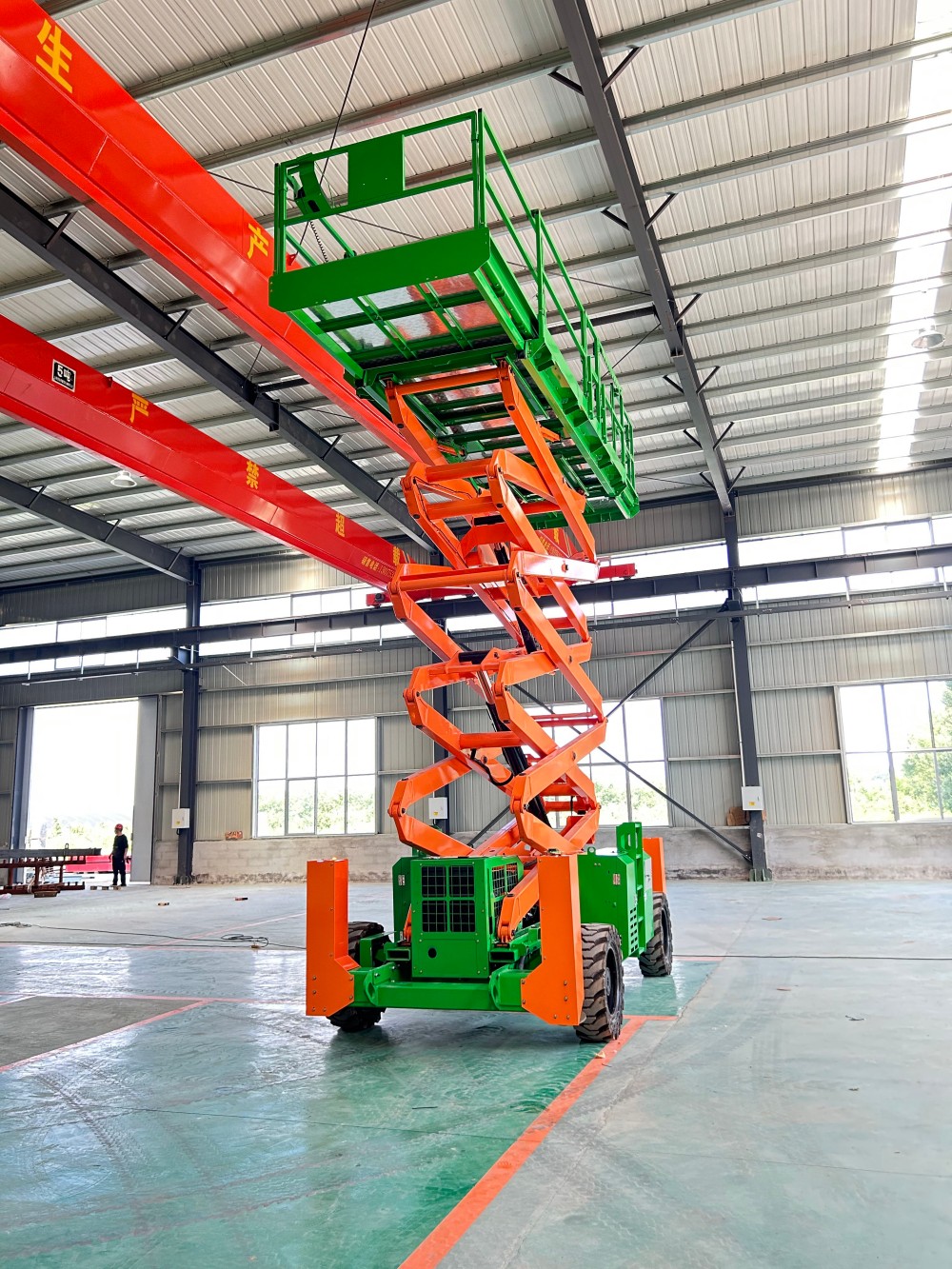

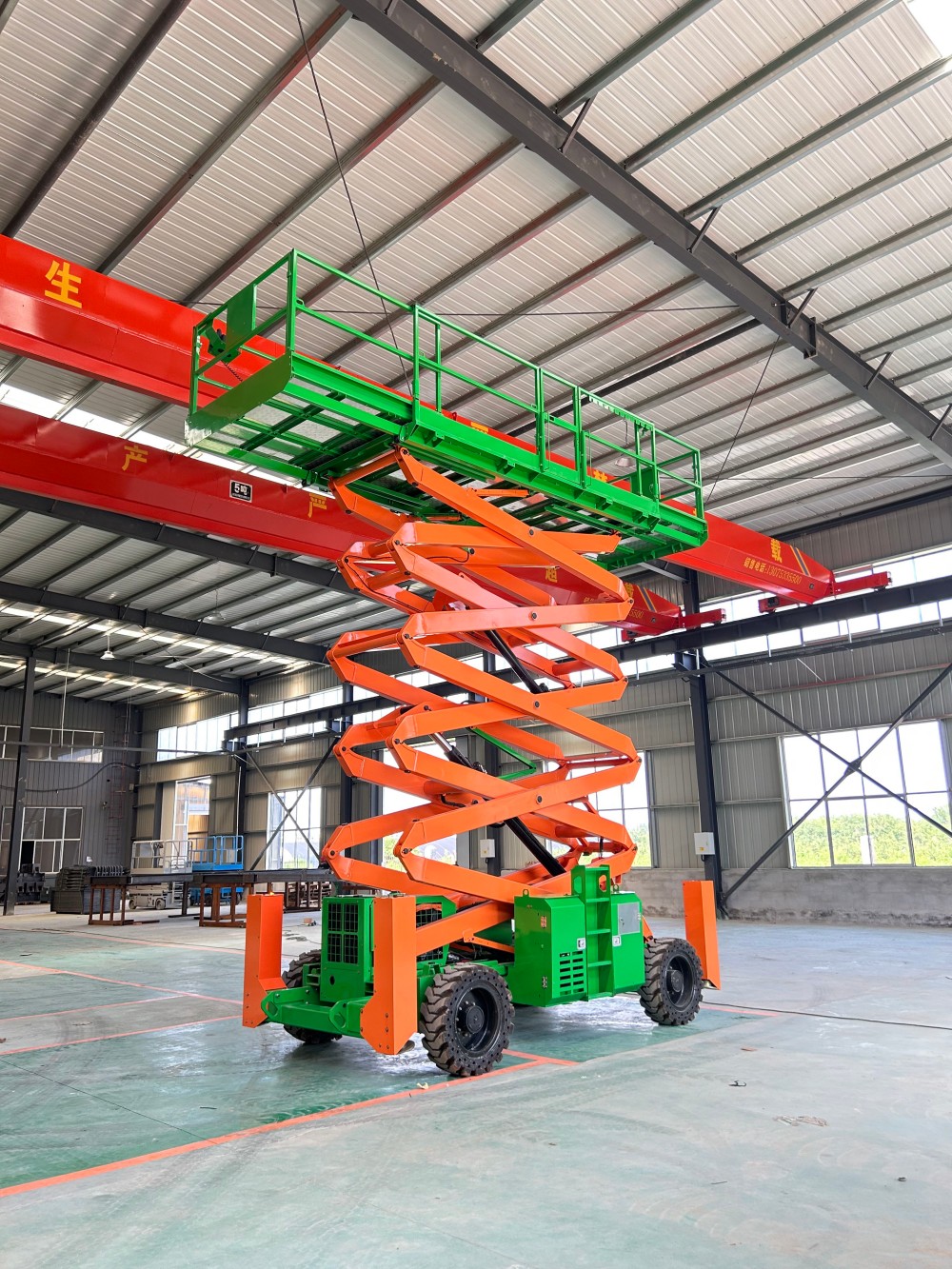

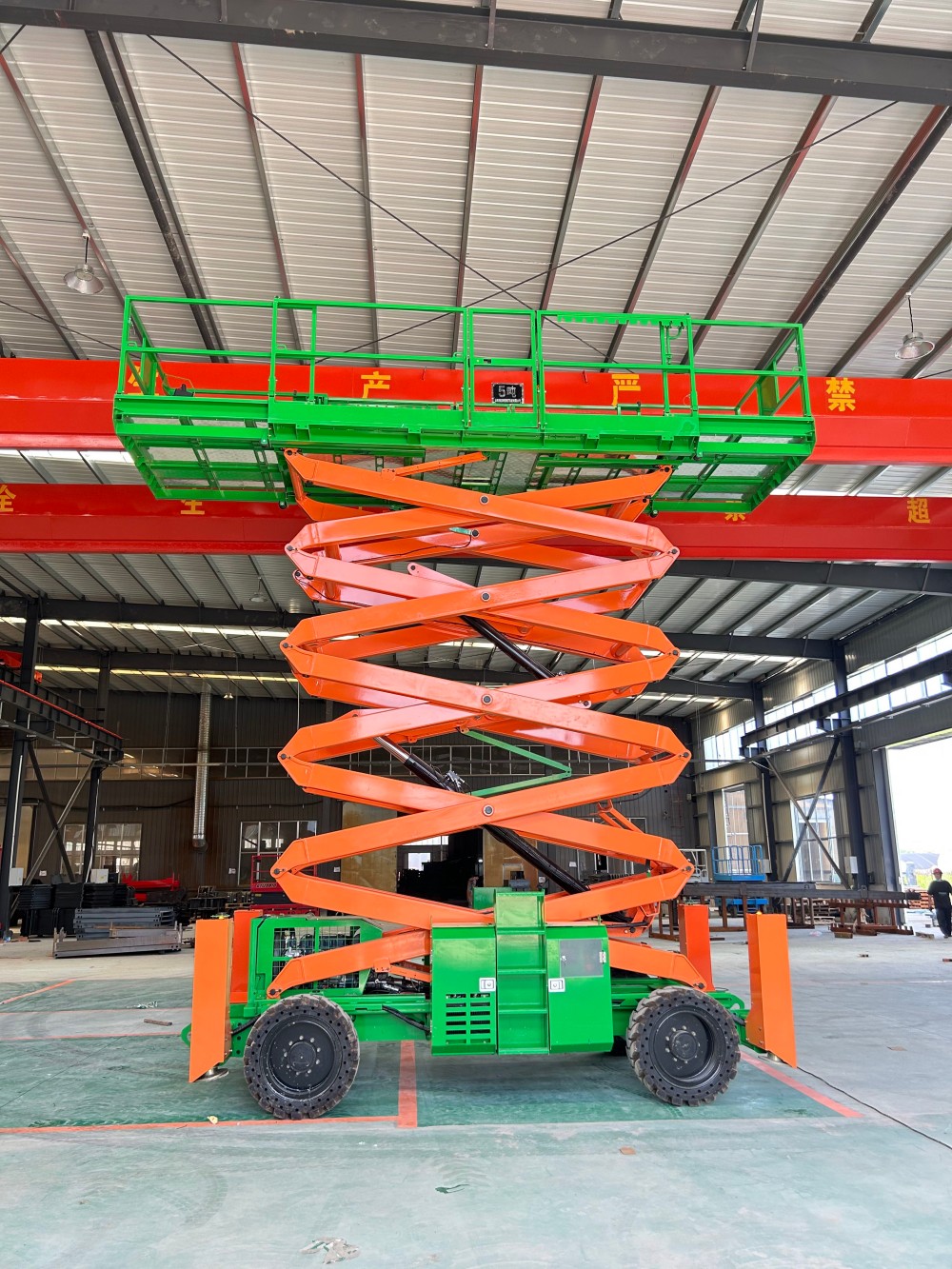

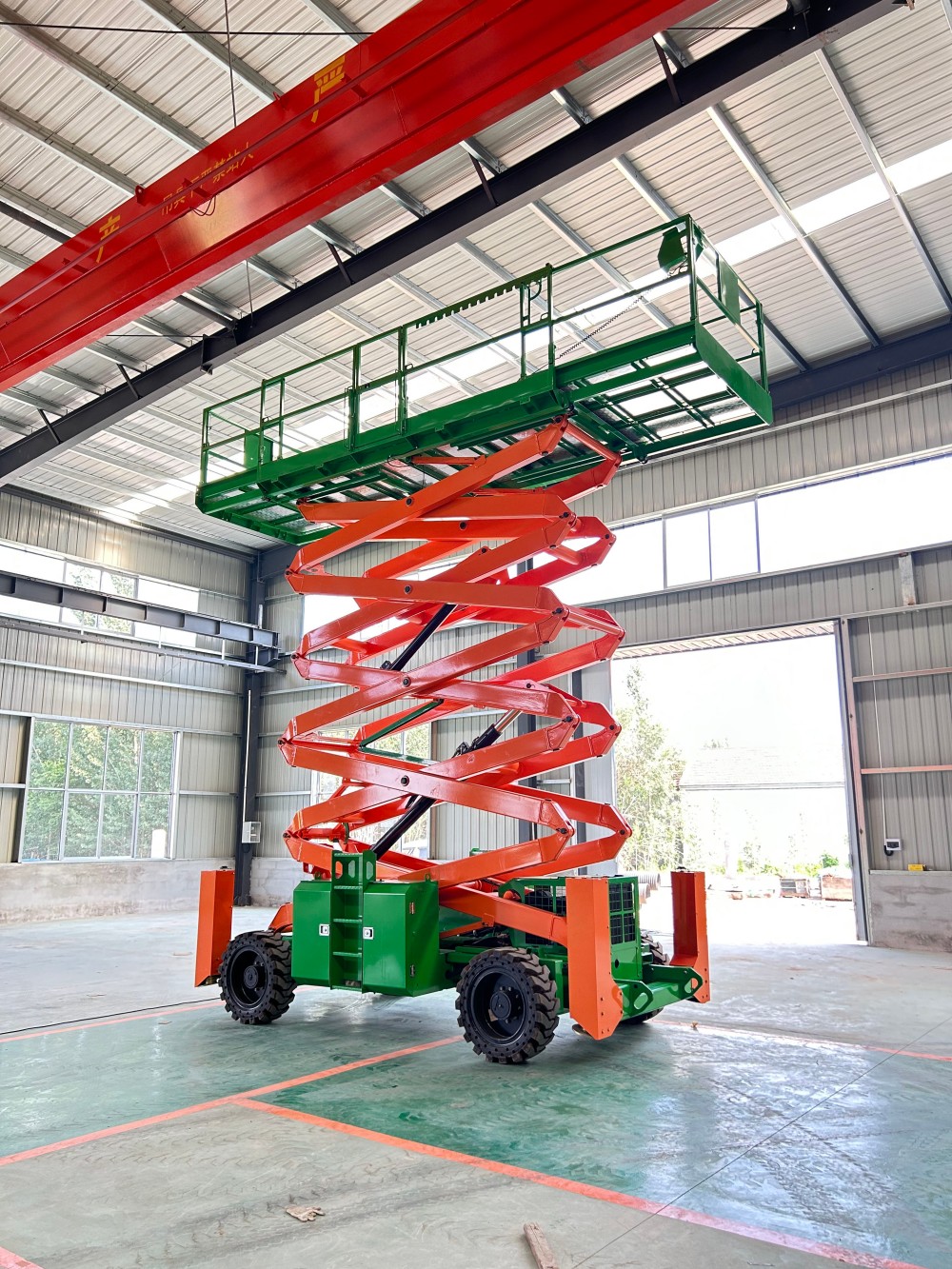

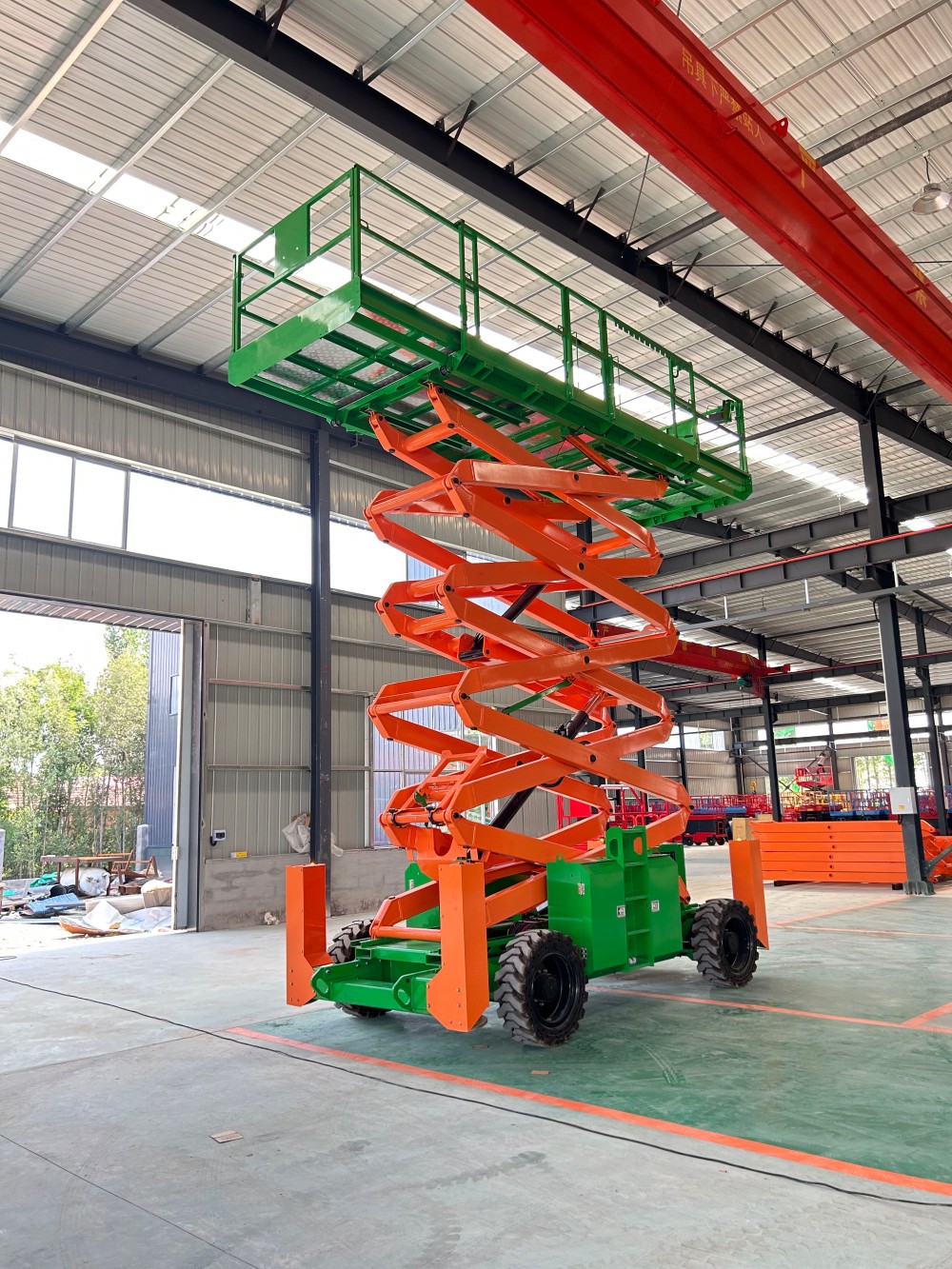

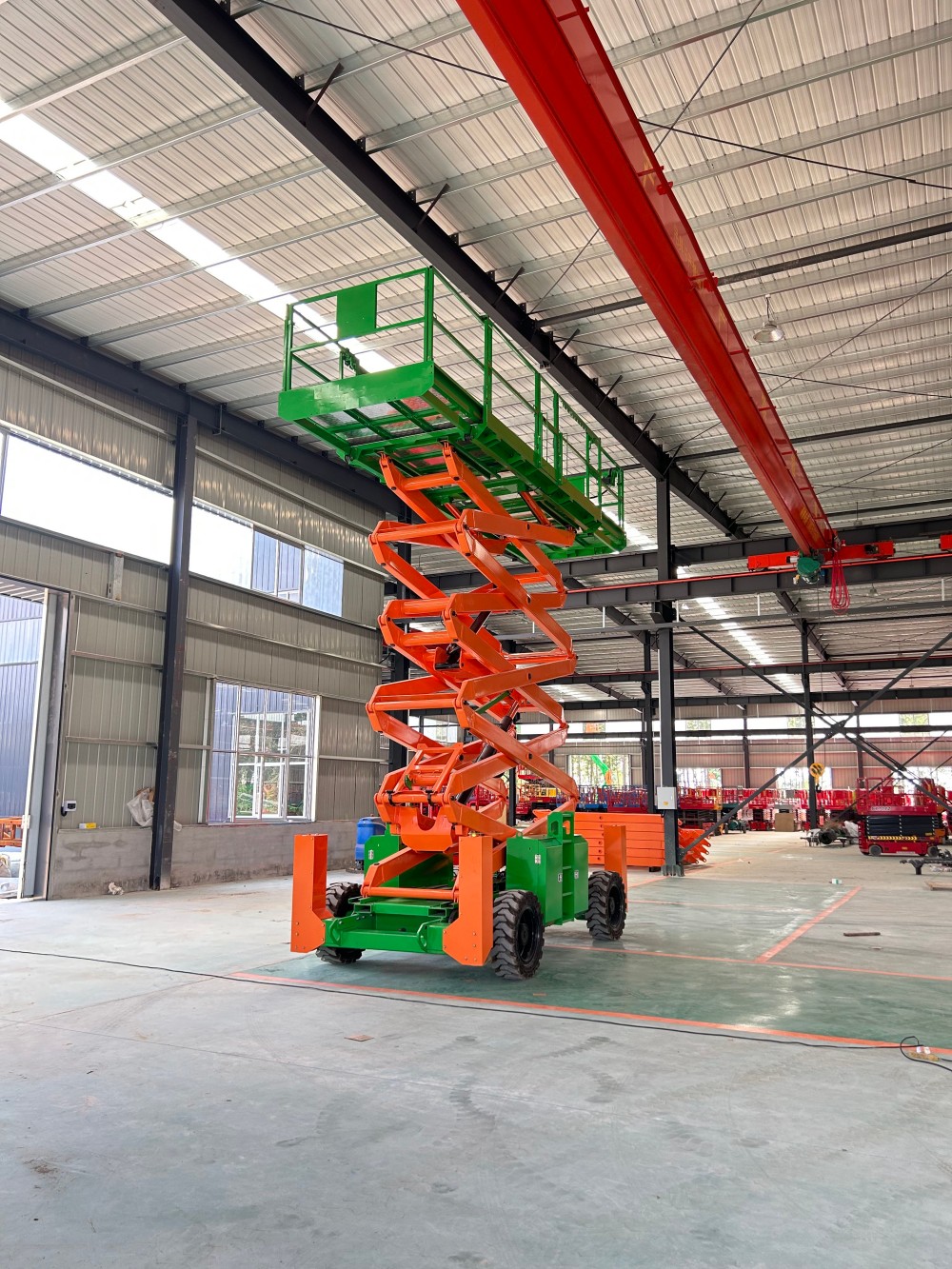

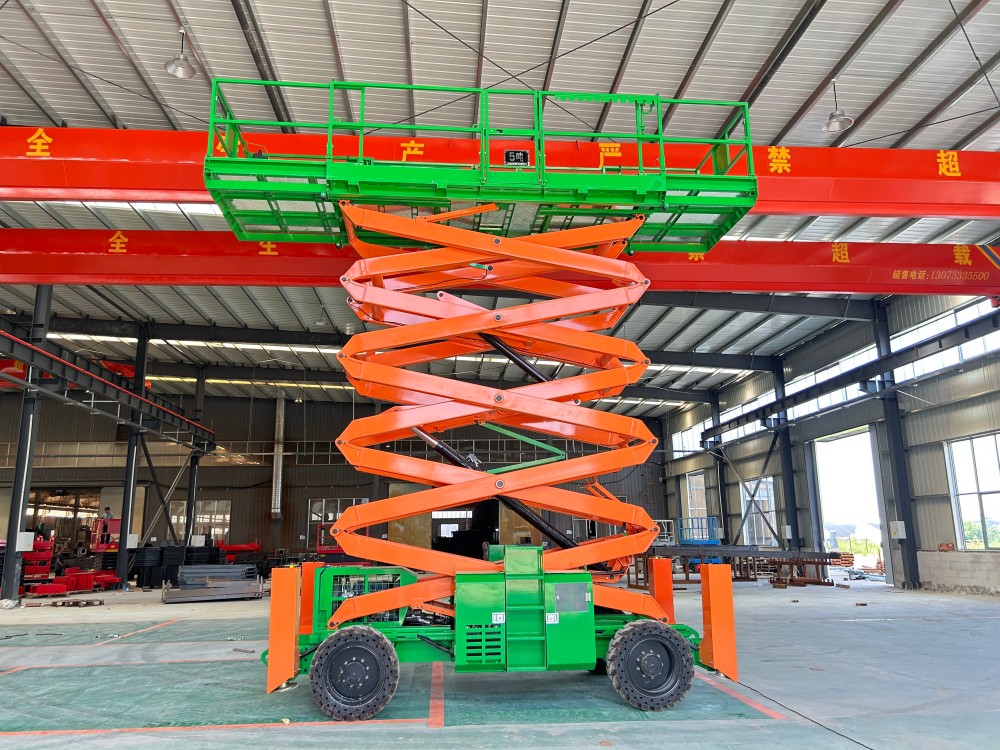

| Model | MPS1023RT | MPS1323RT | MPS1623RT |
|---|---|---|---|
| Size | |||
| Maximum working height | 12.0 m | 15.1 m | 18.2 m |
| Maximum platform height | 10.0 m | 13.1 m | 16.2 m |
| Overall length | 4.88 m | 4.88 m | 4.88 m |
| Overall width | 2.30 m | 2.30 m | 2.30 m |
| Overall height (unfolded fence) | 2.75 m | 2.95 m | 3.15 m |
| Overall height (folded fence) | 2.1 m | 2.3 m | 2.5 m |
| Platform dimensions (length × width) | 3.98 × 1.83 | 3.98 × 1.83 | 3.98 × 1.83 |
| Platform extension size | Front 1.5 m / Rear 1.2 m | Front 1.5 m / Rear 1.2 m | Front 1.5 m / Rear 1.2 m |
| Wheelbase | 2.85 m | 2.85 m | 2.85 m |
| Ground clearance | 360 mm | 360 mm | 360 mm |
| Performance | |||
| Maximum number of employees | 7 | 7 | 4 |
| RATED LOAD | 1150 kg | 680 kg | 680 kg |
| Extended platform rated load | 230 kg | 230 kg | 230 kg |
| Machine travel speed (retracted state) | 6.1 km/h | 6.1 km/h | 6.1 km/h |
| Machine travel speed (lifting state) | 1.1 km/h | 1.1 km/h | 1.1 km/h |
| Rise/fall time | 50/35s | 55/45s | 60/50s |
| Gradeability | 50% | 50% | 40% |
| Minimum turning radius (inner wheel) | 2.16 m | 2.16 m | 2.16 m |
| Minimum turning radius (outer wheel) | 5.33 m | 5.33 m | 5.33 m |
| Maximum allowable angle for work (front and back) | 3° | 3° | 3° |
| Maximum allowable working angle (lateral, leg retraction) | 2° | 2° | 2° |
| Maximum allowable angle for work (front and back, leg extension) | 0.8° | 0.8° | 0.8° |
| Maximum leg‑leveling angle (front and rear) | 7° | 7° | 7° |
| Maximum allowable angle for work (lateral) | 12° | 12° | 12° |
| Drive | |||
| Drive | 4WD,2WS | 4WD,2WS | 4WD,2WS |
| Tire | 33×12‑20/ Solid foam‑filled | 33×12‑20/ Solid foam‑filled | 33×12‑20/ Solid foam‑filled |
| Power | |||
| Power source | Deutz D2.9L,Stage 5,36KW | Deutz D2.9L,Stage 5,36KW | Deutz D2.9L,Stage 5,36KW |
| Control voltage | 12V DC | 12V DC | 12V DC |
| Fuel tank capacity | 110 L | 110 L | 110 L |
| Hydraulic system capacity | 110 L | 110 L | 110 L |
| Weight | |||
| Whole machine weight | 6950 kg | 7230 kg | 8020 kg |
