Hydraulic Scissor Lift JCPT1210

Max Platform Height: 10 Meters

Max Working Height: 12 Meters

Loading Capacity: 300kg

Platform Size: 2270*1150mm

Power: Rechargeble Battery

Certificate: CE, ISO, ROHS,Saber

Get a quote

Product Details
Video

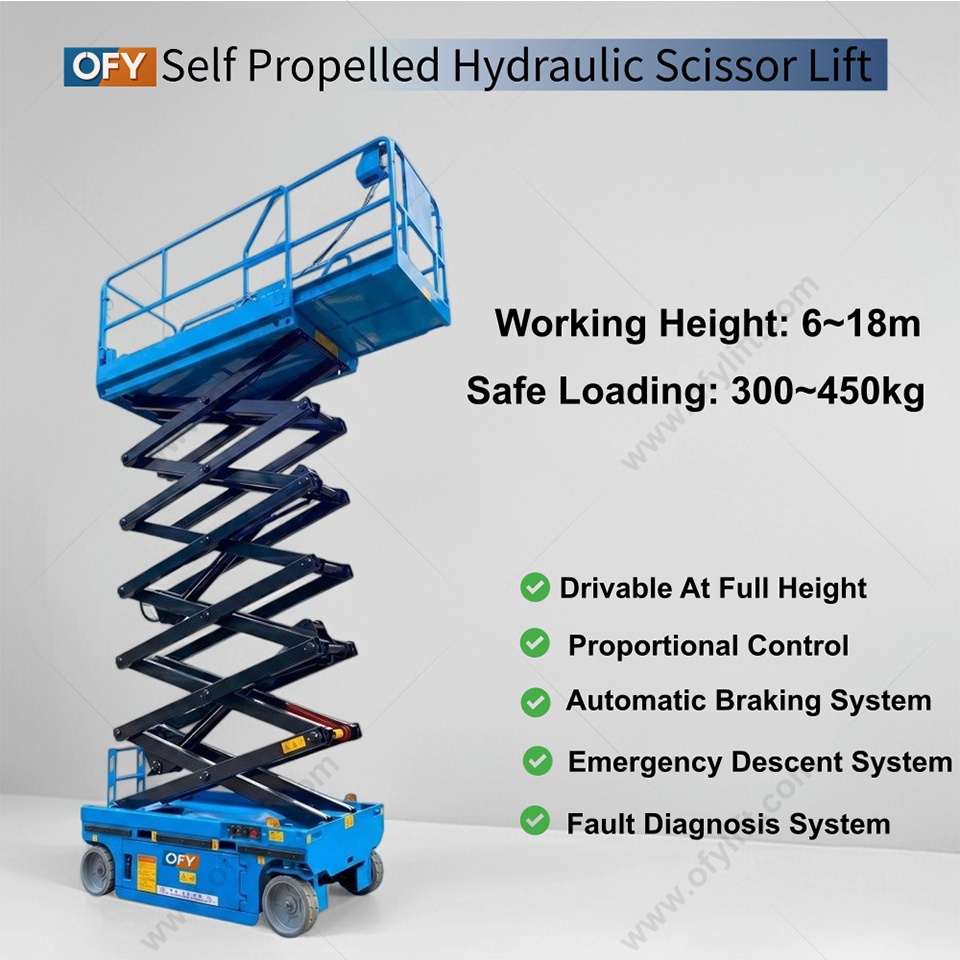

8m To 16m Hydraulic Self-Propelled Scissor Lifts

Product Overview

OFY ® self-propelled hydraulic scissor lift platform is a fully integrated, battery-powered aerial work solution designed for flexible, safe, and efficient high-altitude operations. Featuring full hydraulic drive and one-person intelligent operation, the machine supports automatic walking, precise lifting, and flexible steering without external traction or power supply. It allows free movement and height adjustment on site, greatly improving working efficiency and reducing labor costs for indoor and outdoor aerial tasks. Widely applicable to factory maintenance, warehouse logistics, construction decoration, venue engineering, and public facility maintenance, this self-propelled lift delivers stable performance, high maneuverability, and excellent safety for diverse working scenarios.


Technical Data Sheet:

Model No.	JCPT0806	JCPT1008	JCPT1210	JCPT1412	JCPT1614
Max Platform Height	6m	8m	10m	11.85m	13.8m
Max Working Height	8m	10m	12m	13.85m	15.8m
Platform Size	2.27x1.13x1.1m	2.27x1.13x1.1m	2.27x1.13x1.1m	2.27x1.13x1.1m	2.63x1.13x1.1m
Extendable Platform Size	0.9m	0.9m	0.9m	0.9m	0.9m
Safe Loading Capacity	450kg	450kg	320kg	320kg	230kg
Loading Capacity For Extendable Platform	110kg	110kg	110kg	110kg	110kg
Overall Dimensions (Guardrails Unfolded)	2.39×1.16×2.21m	2.39×1.16×2.34m	2.39×1.16×2.47m	2.39×1.16×2.6m	2.79×1.25×2.6m
Overall dimensions (Guardrails Folded)	2.39×1.16×1.7m	2.39×1.16×1.82m	2.39×1.16×1.94m	2.39×1.16×2.06m	2.39×1.16×2.06m
Wheelbase	1.865m	1.865m	1.865m	1.865m	2.23m
Battery	4×6V/200ah	4×6V/200ah	4×6V/200ah	4×6V/200ah	4×6V/240ah
Charger	24V/30A	24V/30A	24V/30A	24V/30A	24V/30A
Tire	Φ381×127mm	Φ381×127mm	Φ381×127mm	Φ381×127mm	Φ381×127mm
Total Weight	2100kg	2250kg	2550kg	2950	3300kg

Main Features and Advantages:

1. Full Self-Propelled & Flexible Maneuverability

Adopting electric drive system, the lift supports autonomous walking, steering and speed adjustment. Operable at full height without manual pushing or towing, its compact body fits narrow aisles and tight working spaces, delivering outstanding on-site flexibility and applicability.

2. Stable Hydraulic Lifting System

Equipped with a premium hydraulic system and optimized scissor structure, the platform lifts smoothly and stably without jitter. It features strong structural rigidity and stable load-bearing capacity, with intelligent hydraulic overload protection to ensure safe operation and prolong equipment service life.

3. Multi-Dimensional Full Safety Protection

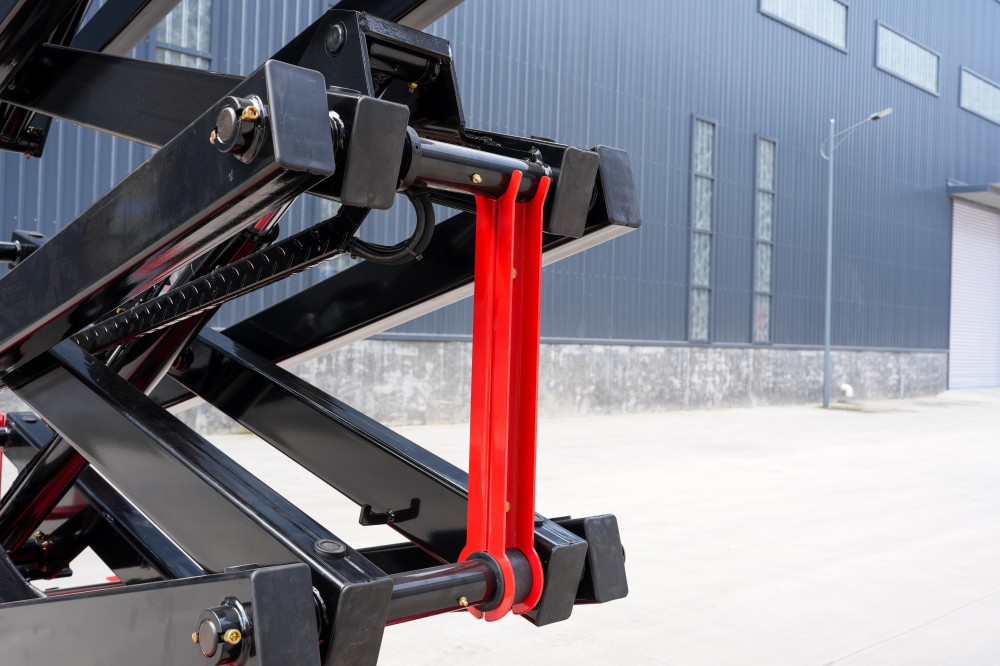

Built with complete safety protection systems, including emergency stop buttons, emergency lowering device, anti-tilt and overload protection, as well as speed limit function for high-altitude travel. Equipped with safety guardrails and pit avoidance structure, it fully prevents tilt and fall risks, meeting international aerial work safety standards.

4. Eco-Friendly & Low-Consumption Operation

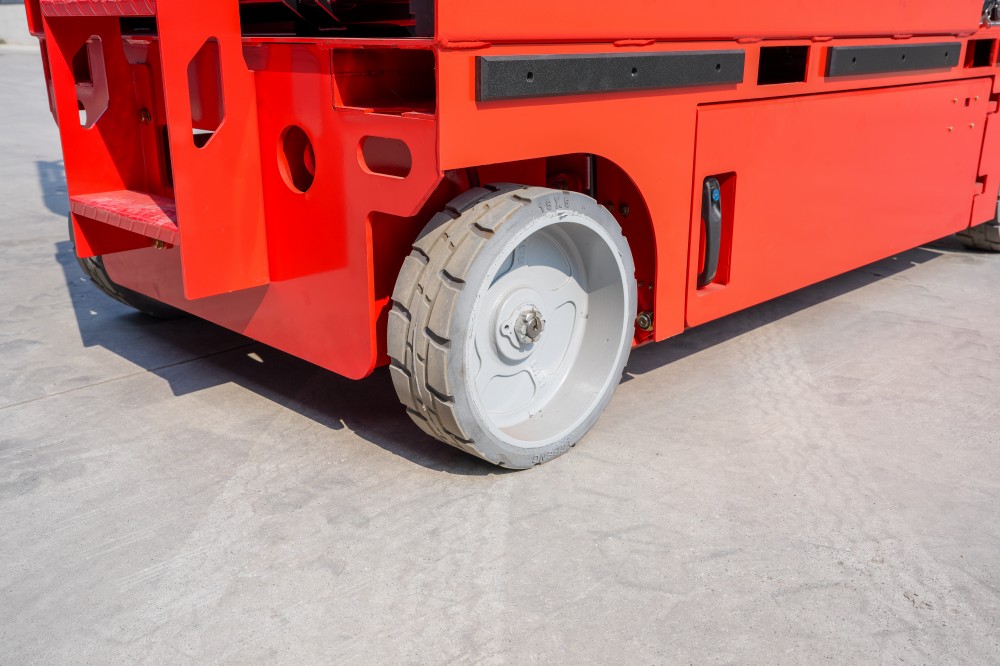

Powered by maintenance-free batteries, the lift runs with zero emissions, low noise and low energy consumption. Fitted with floor-protecting non-marking PU wheels, it is ideal for indoor occasions like malls, offices and clean workshops. Long battery life ensures stable all-day continuous operation.

5. Intelligent & Humanized Operation

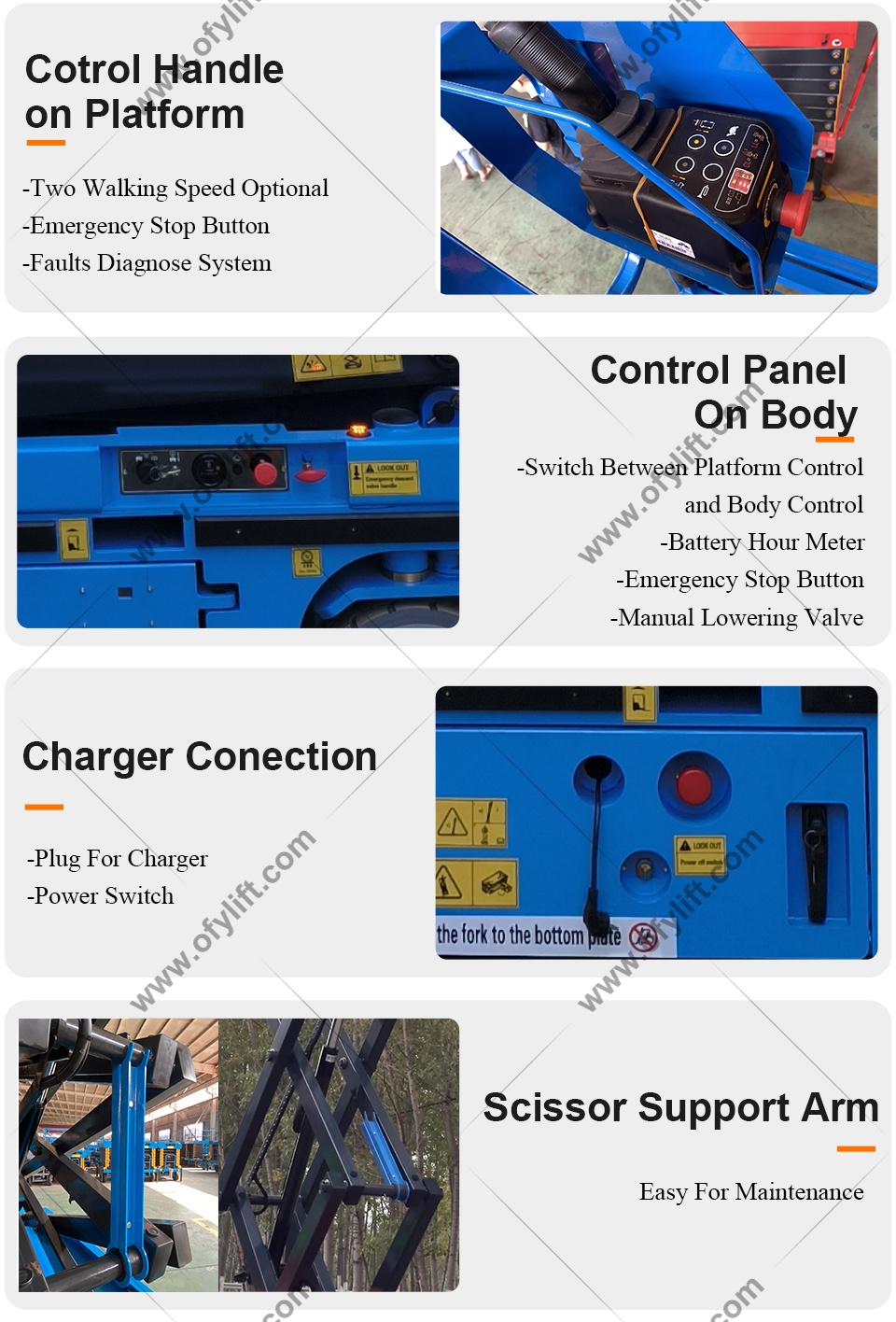

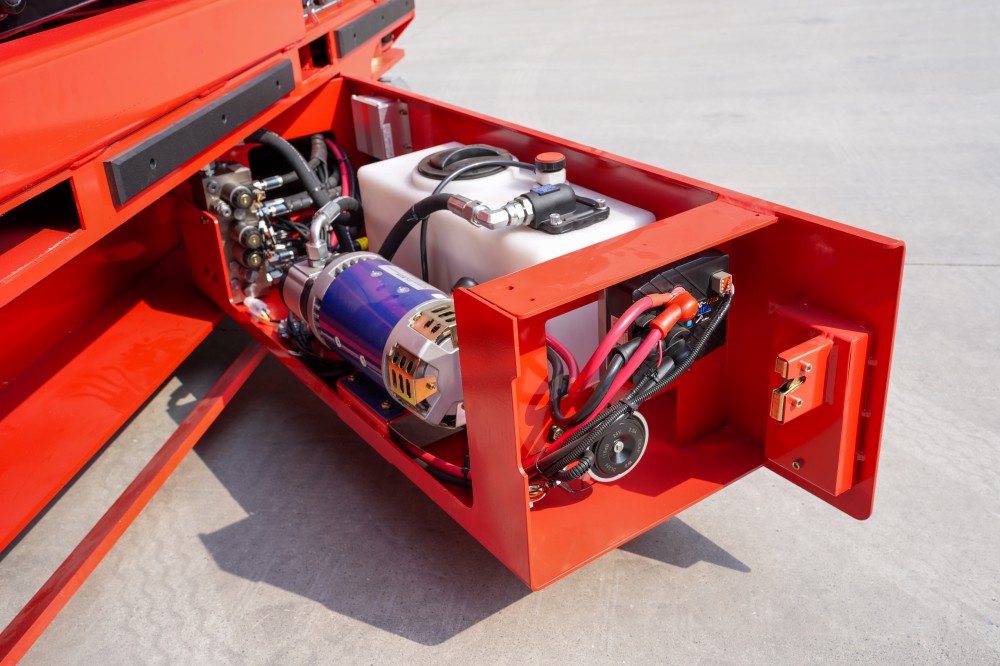

Supports dual platform and ground control modes with simple, user-friendly operation, allowing single-person completion of all working procedures. Modular structure and drawer-type battery design simplify daily inspection and maintenance, greatly reducing later operating costs.

6. Wide Application & High Cost Performance

Available in 6m-16m working height models with stable load capacity, this versatile lift adapts to equipment installation, high-altitude cleaning, maintenance and construction works. It balances high efficiency, durability and cost performance, serving diverse industrial, commercial and municipal aerial work scenarios.

Our Company and Details Show:

1.Top+Why choose us.jpg

11. Our Advantages.jpg

3. 篮色详情图01.jpg

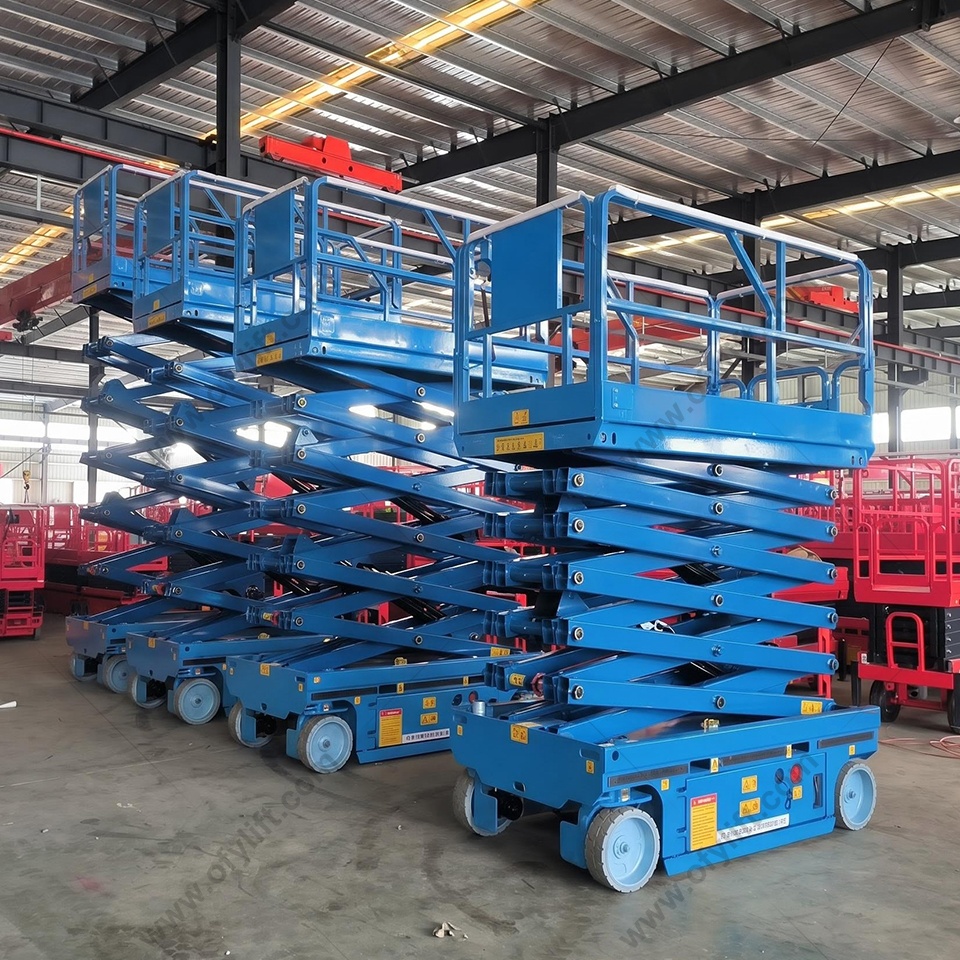

4. 自行剪叉蓝色订单图批量960x960.jpg

OFY® manufactures the ralated scissor lift platforms for different working occasions, Like Mobile scissor lift with larger loading capacity 500kg, 1000kg,1500kg and 2000kg; Rough terrrain type scissor lift for all terrains with battery power and also diesel powers; Small mini scissor lifts with compact size and can go through the elevator and for indoor use; Hydraulic crawler type tracked scissor lift with rubber crawler and steel crawlers. Please tell us your detailed requests, and we will provide you the most suitable model.
